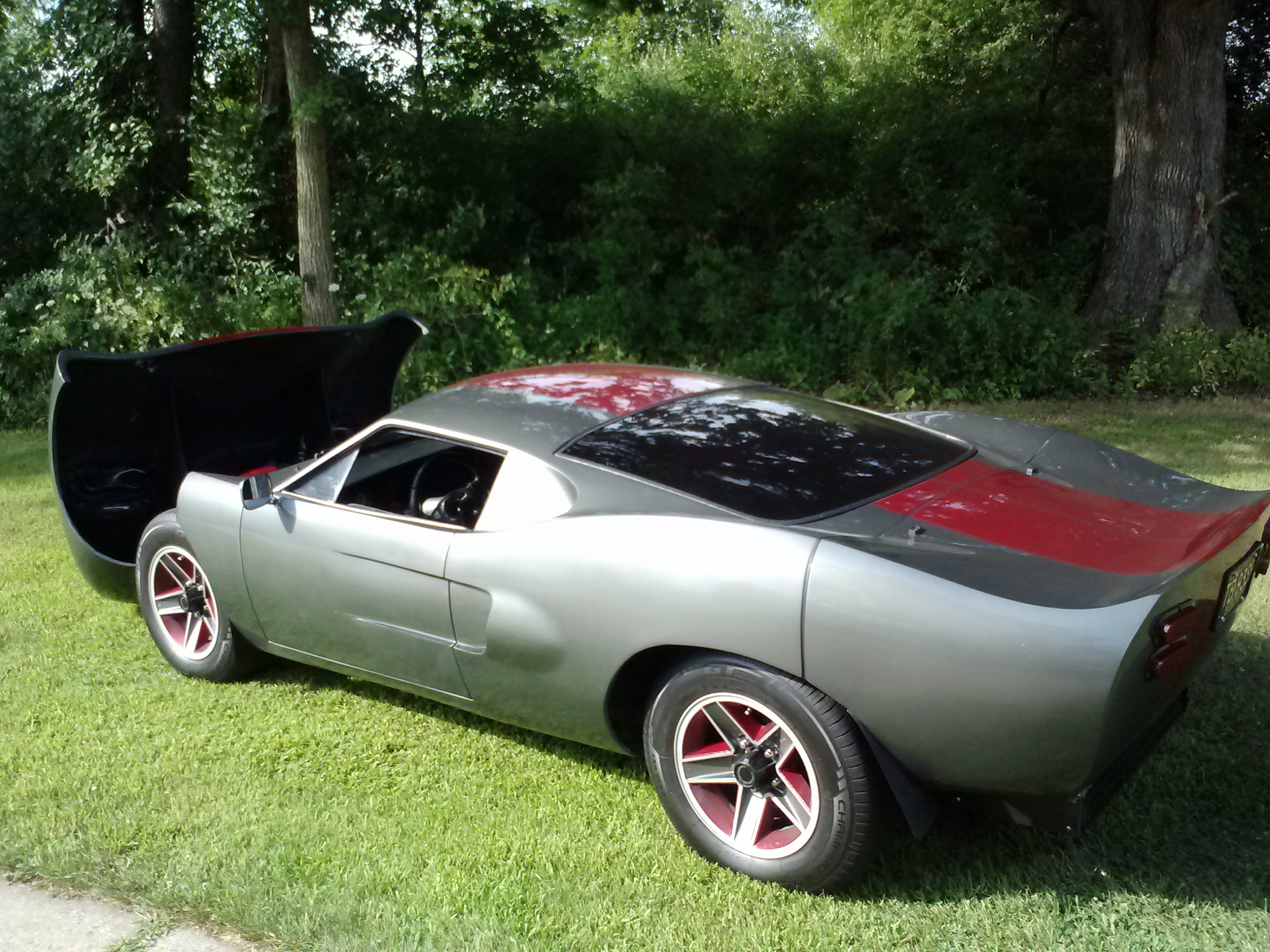

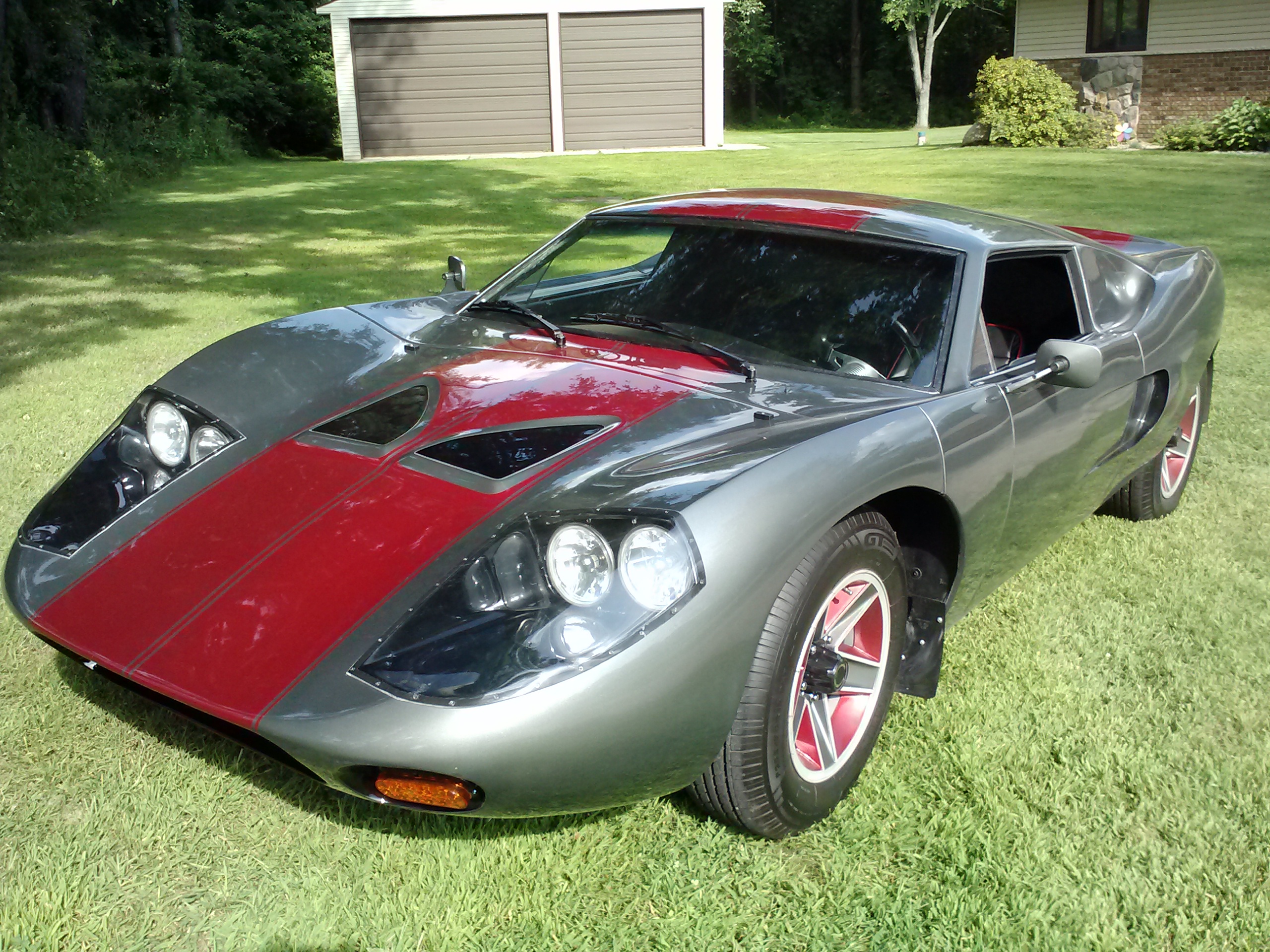

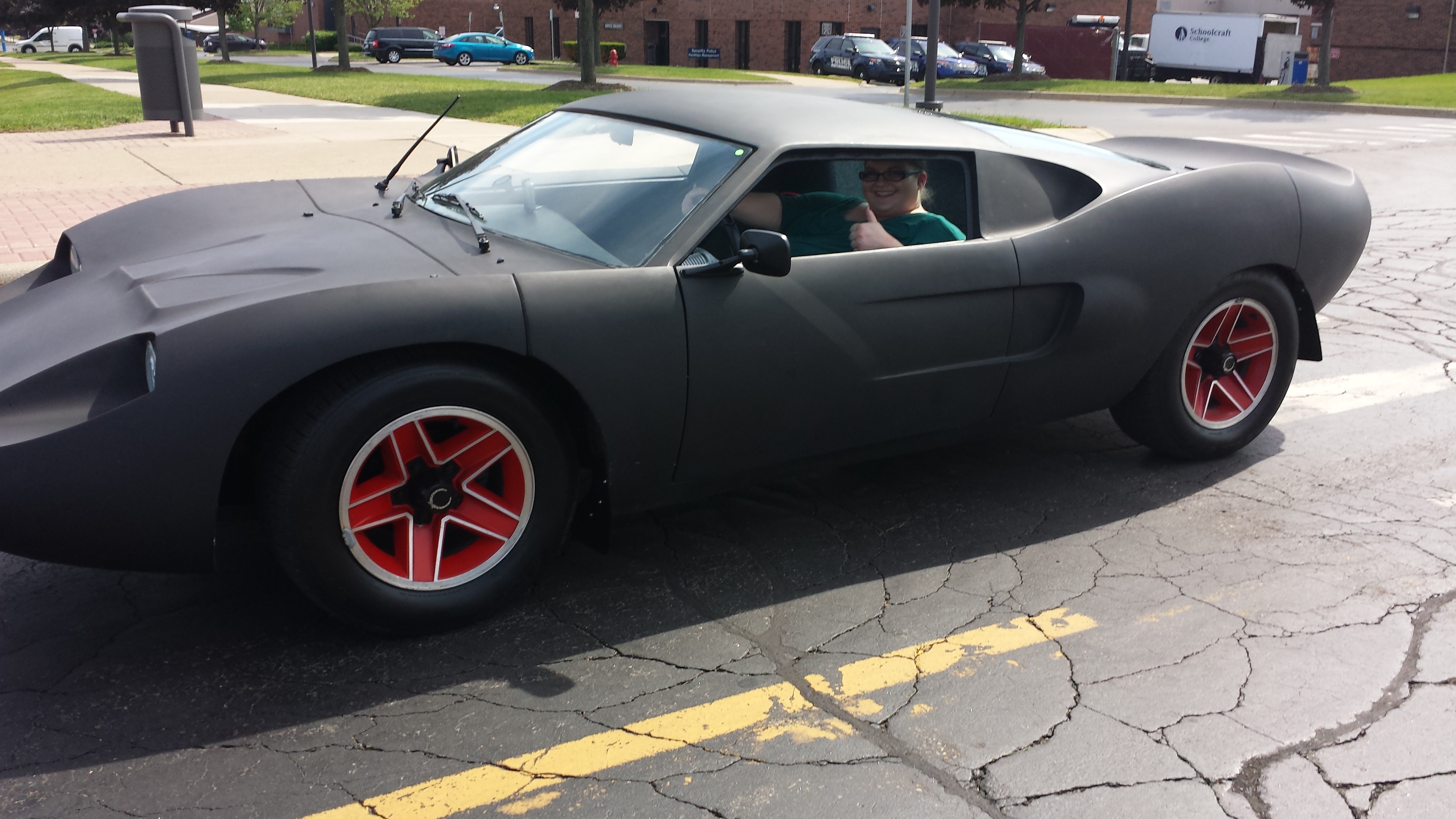

Hi! I'm The Avenger GT-EV, an electric vehicle designed by Chad Sinke.

VW Beetle chassis, fibreglass body,
advanced electric powertrain.

Gallery

About Me

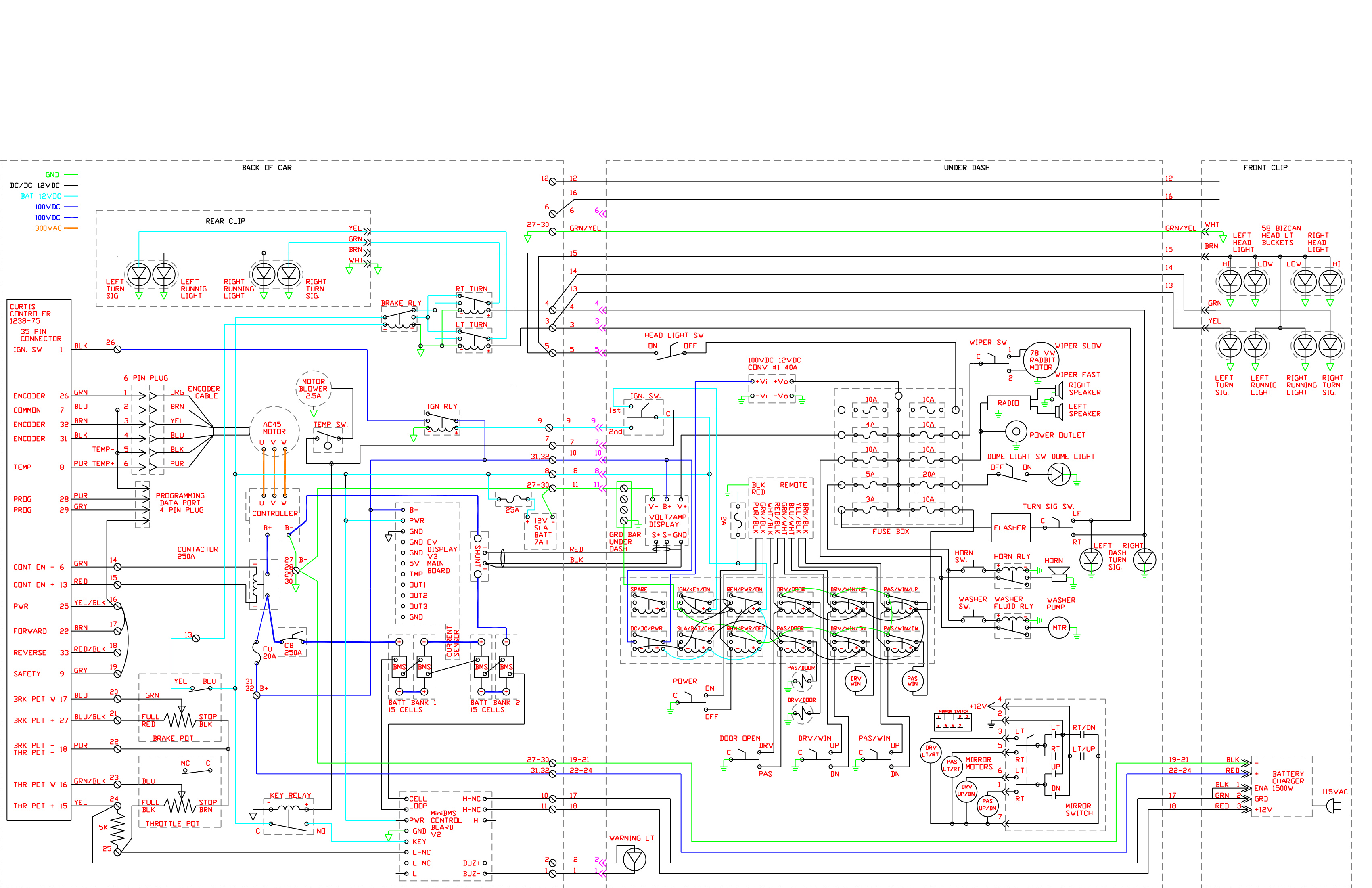

Electric Diagram

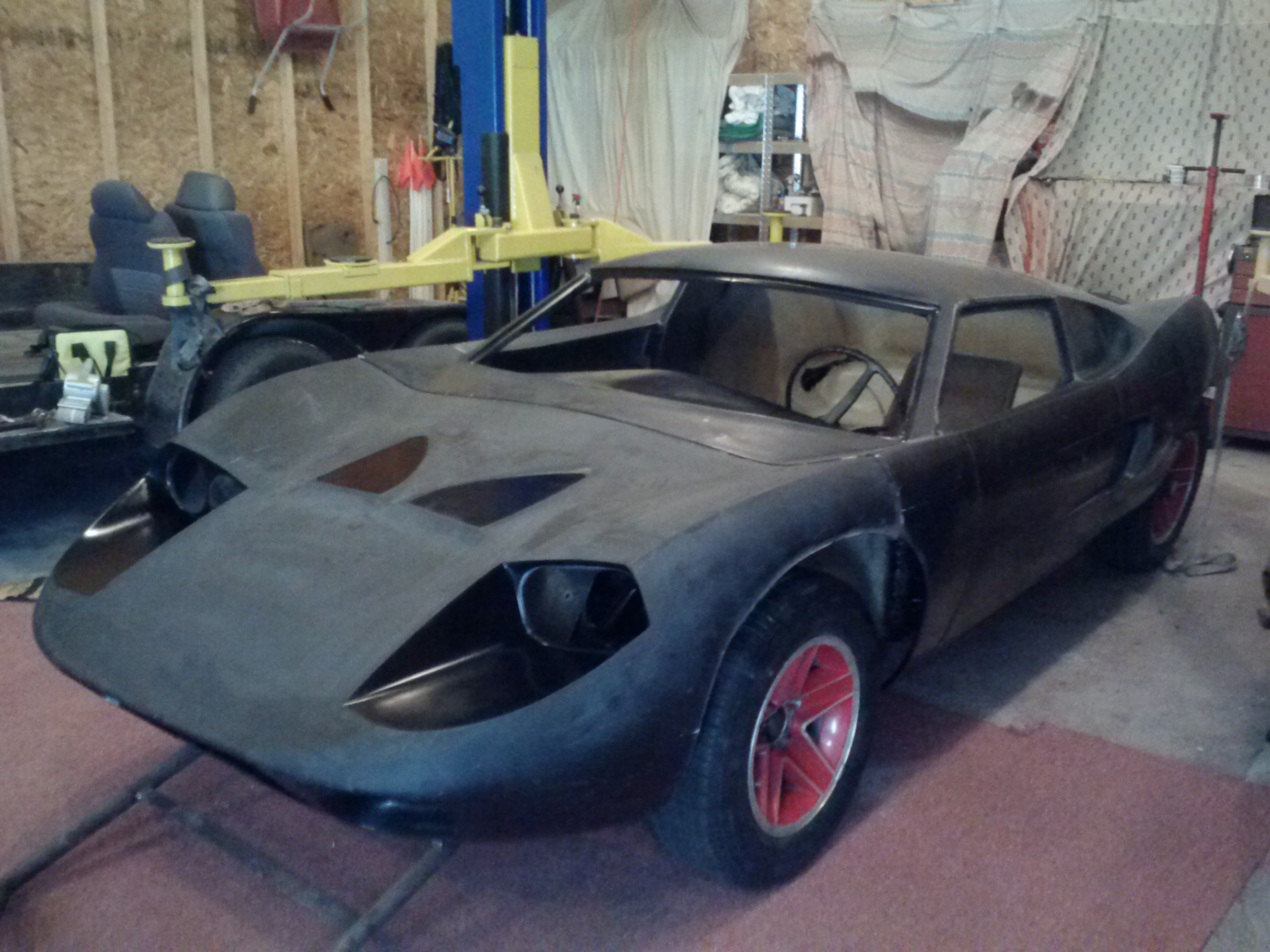

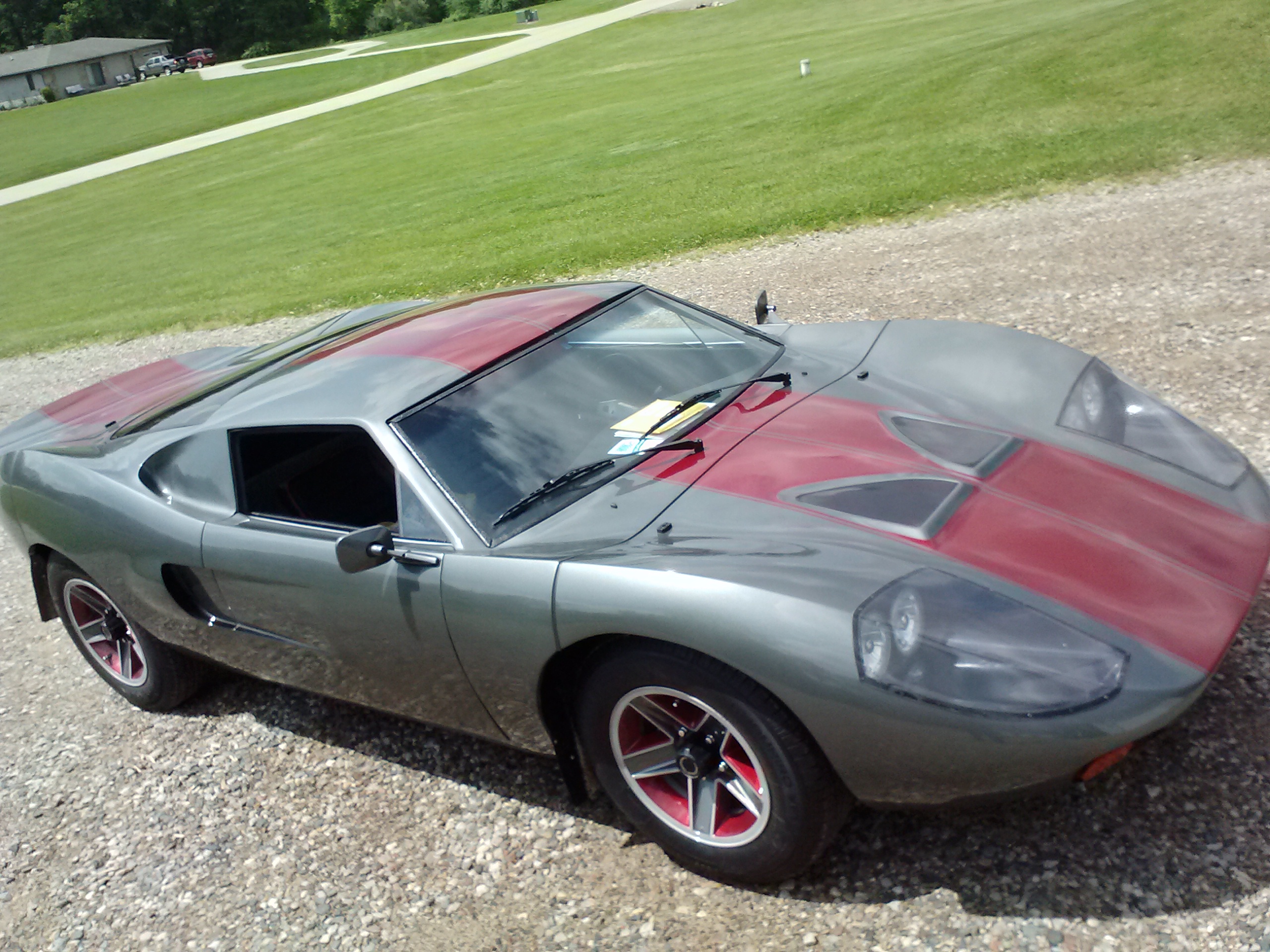

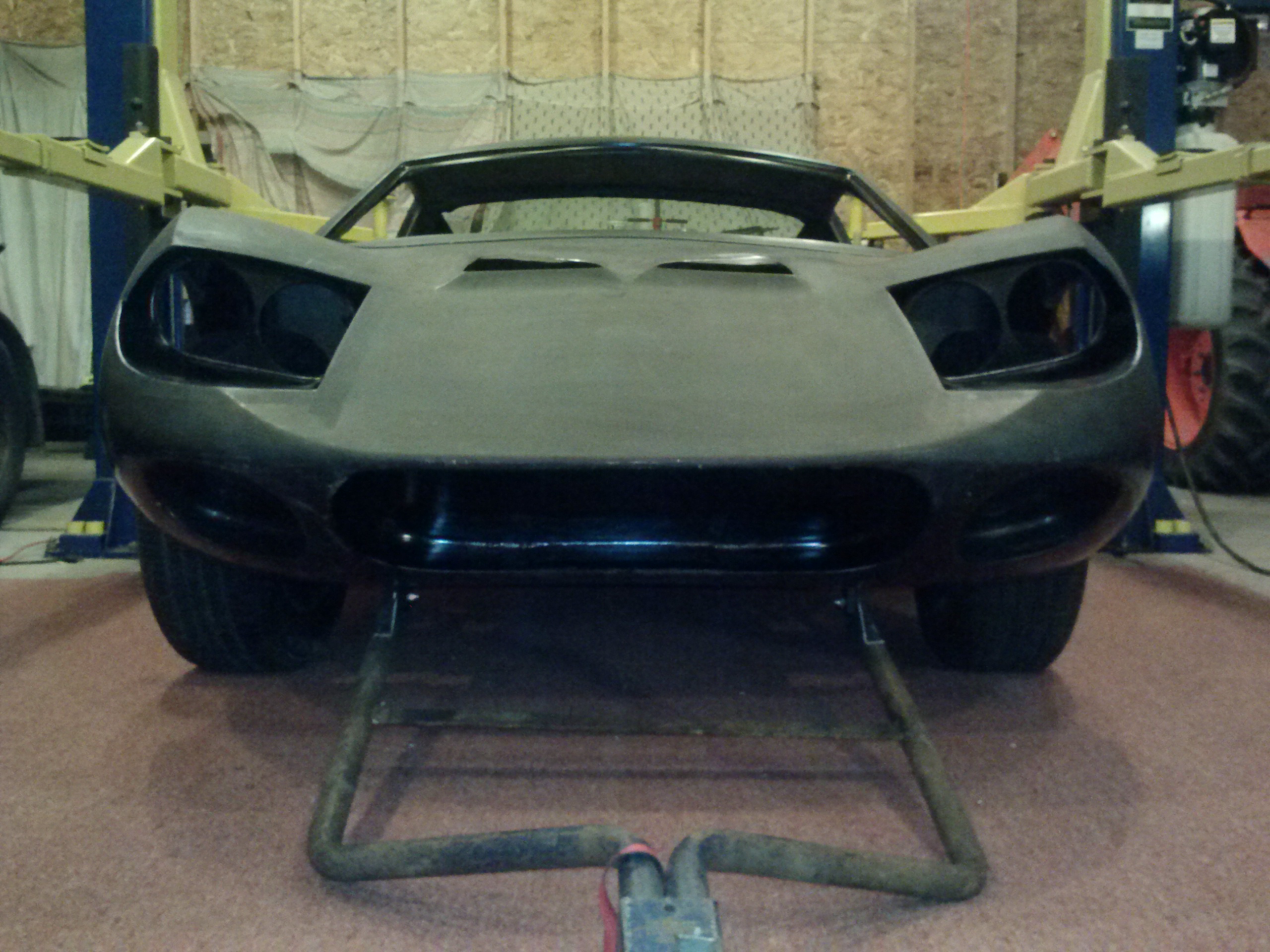

Body:

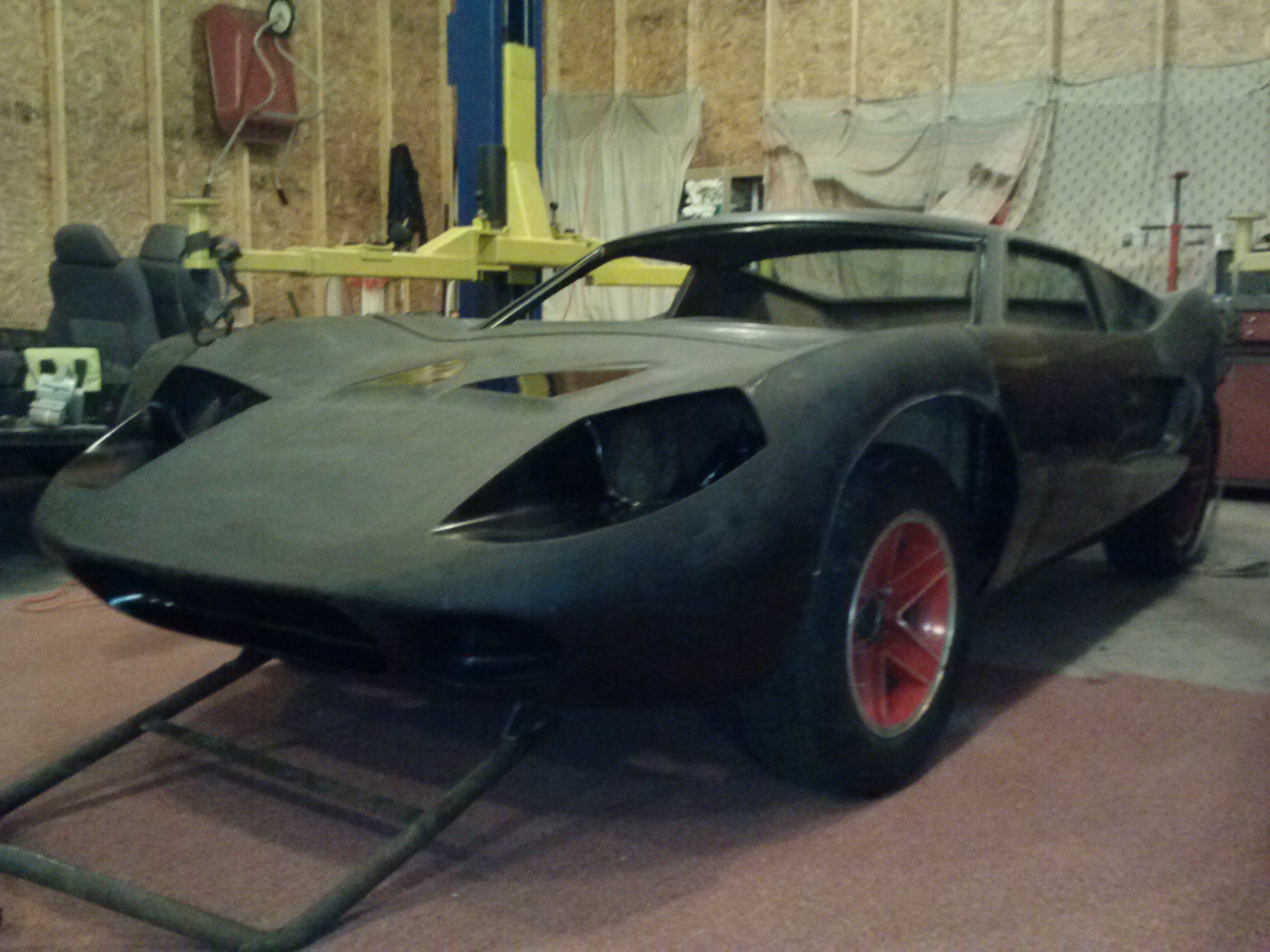

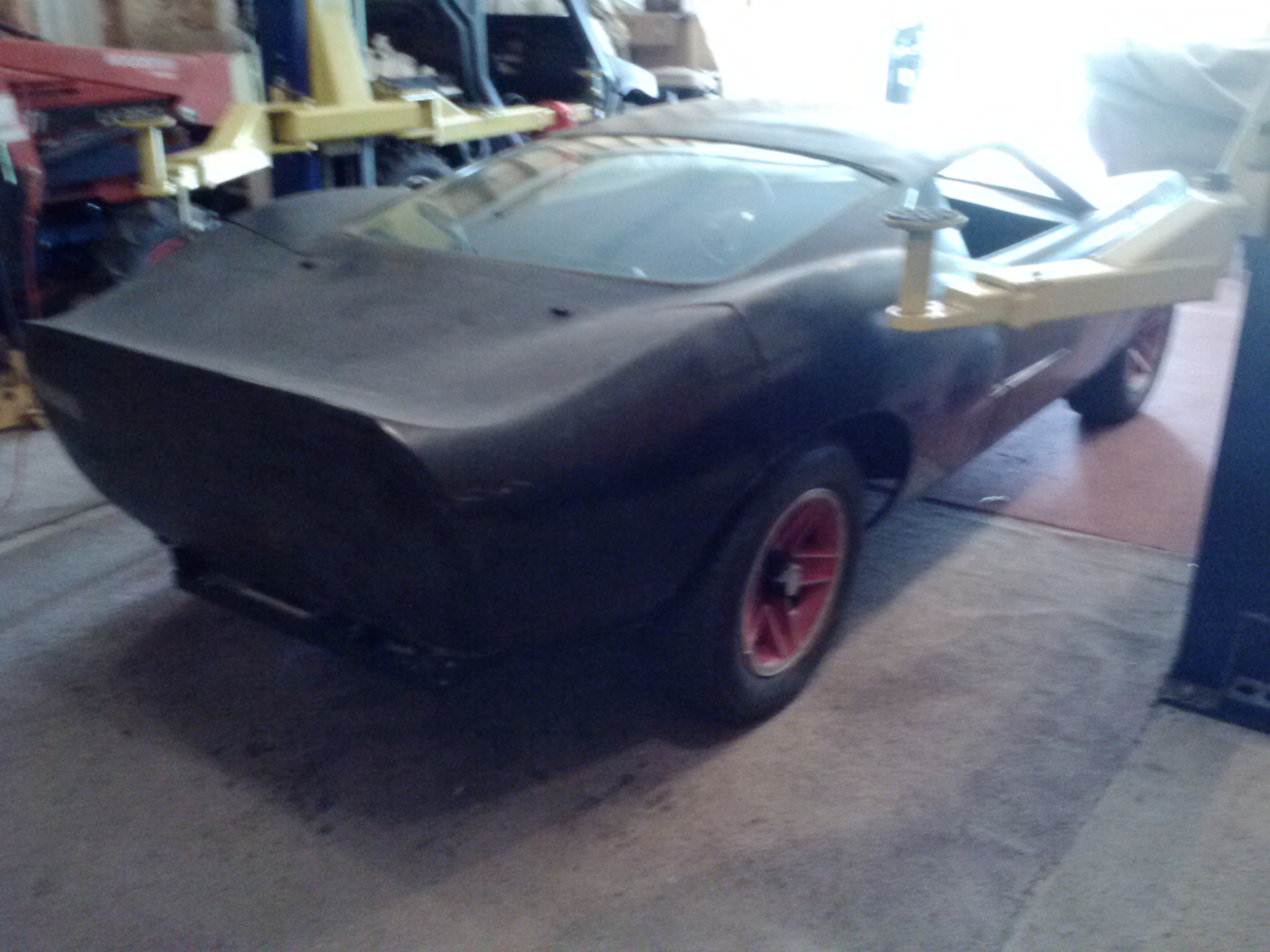

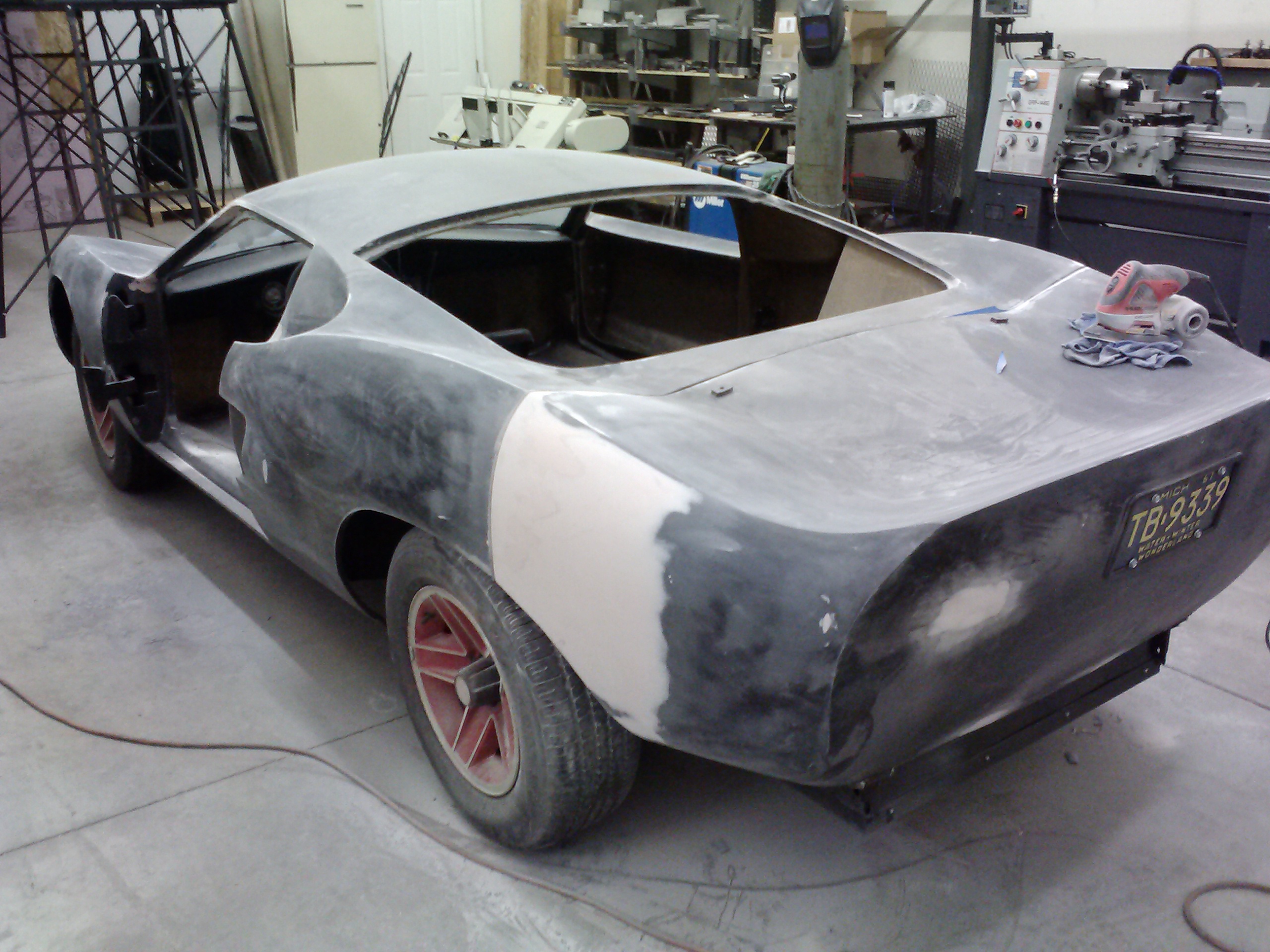

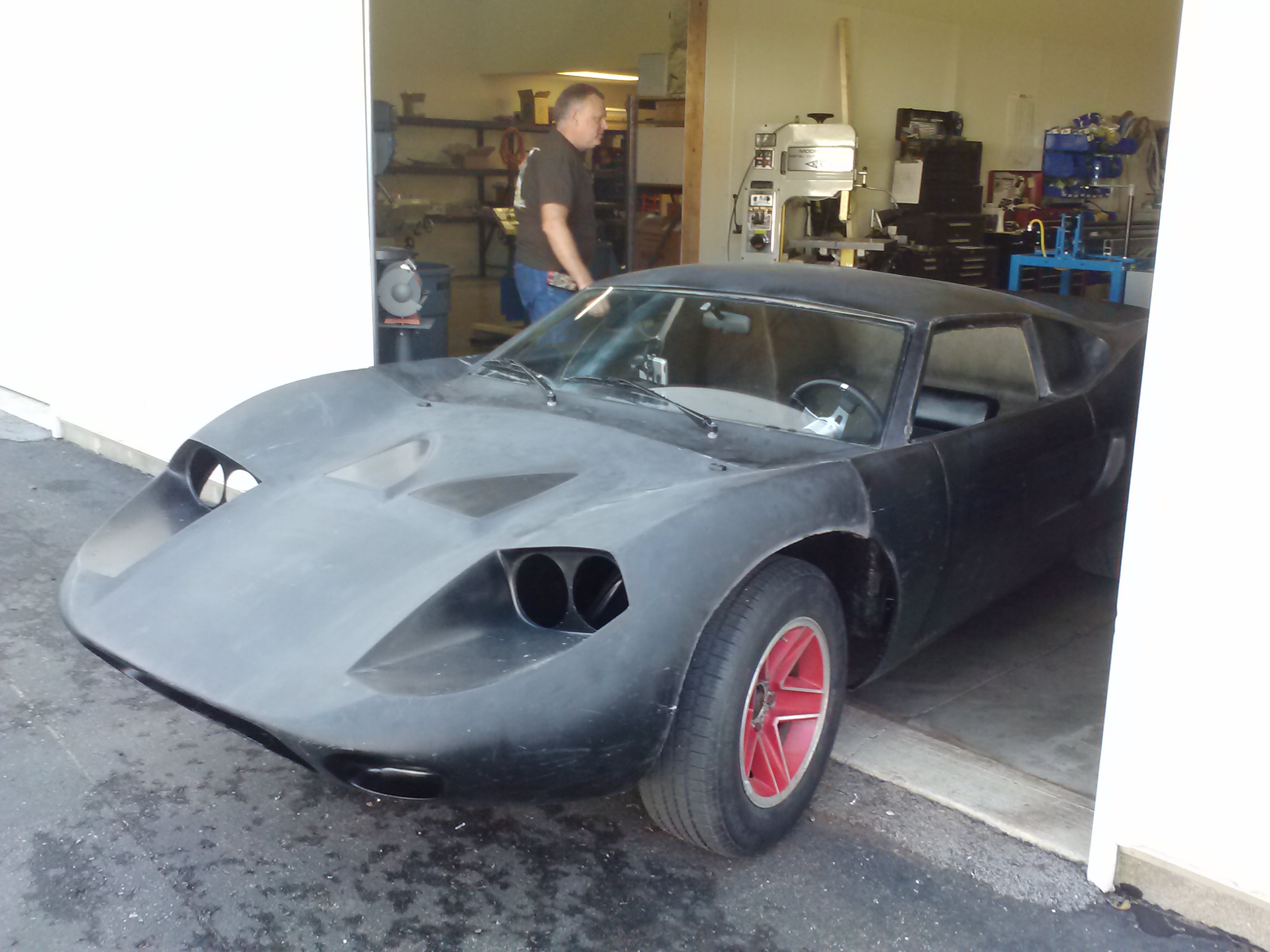

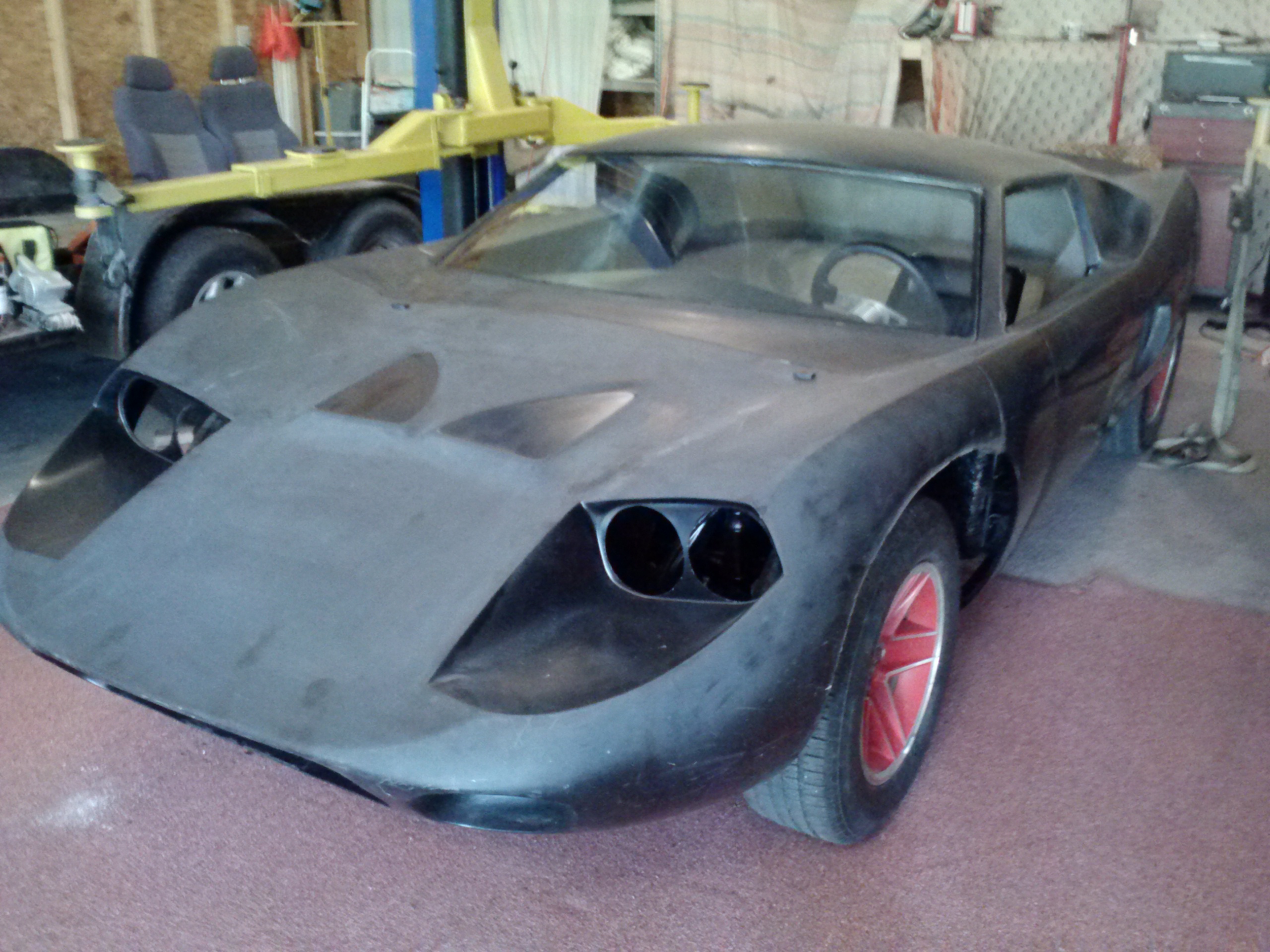

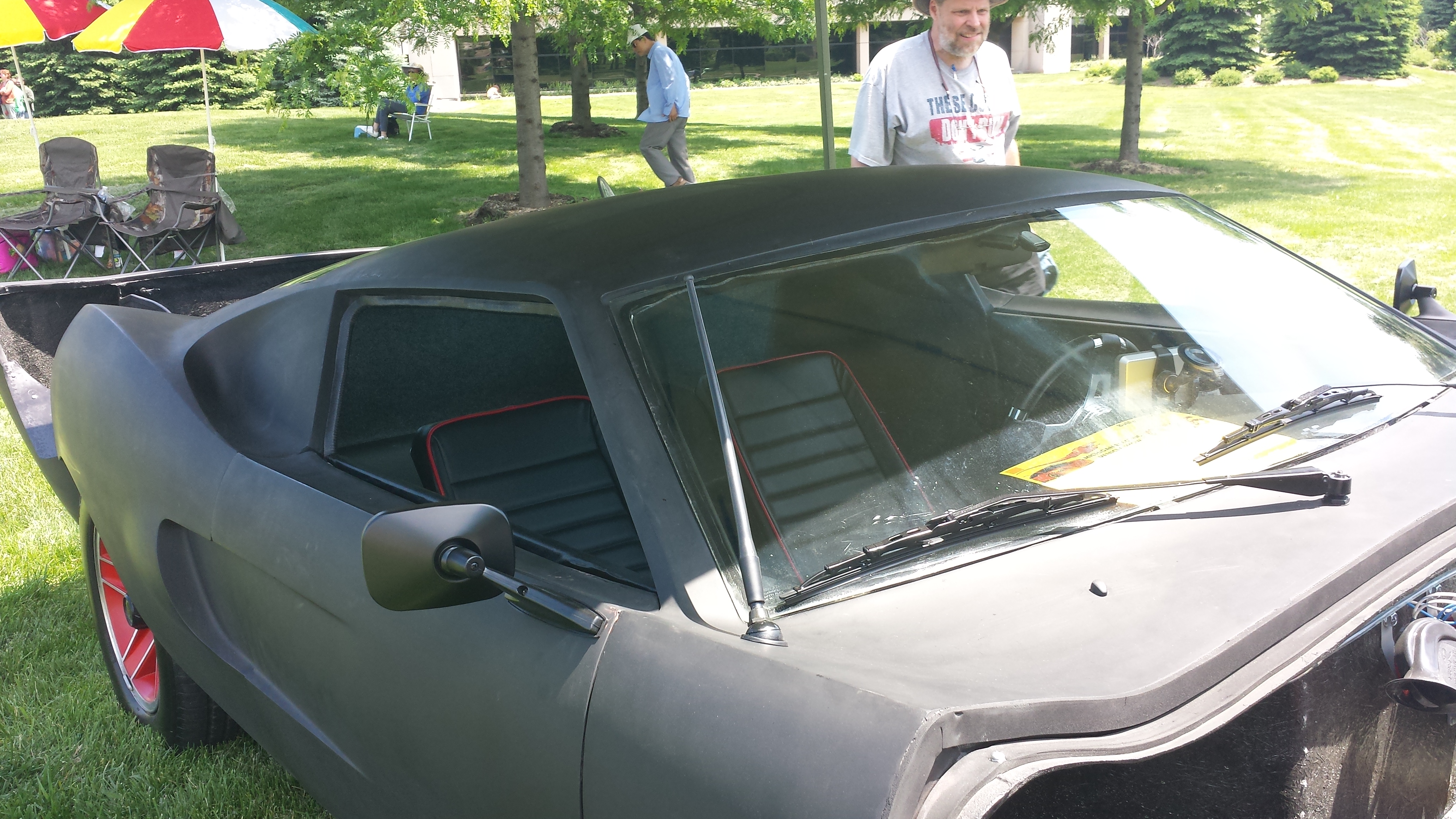

  • Vintage 1960s Avenger GT Kit Car by Fiber Fab
  • Material - Fiber Glass

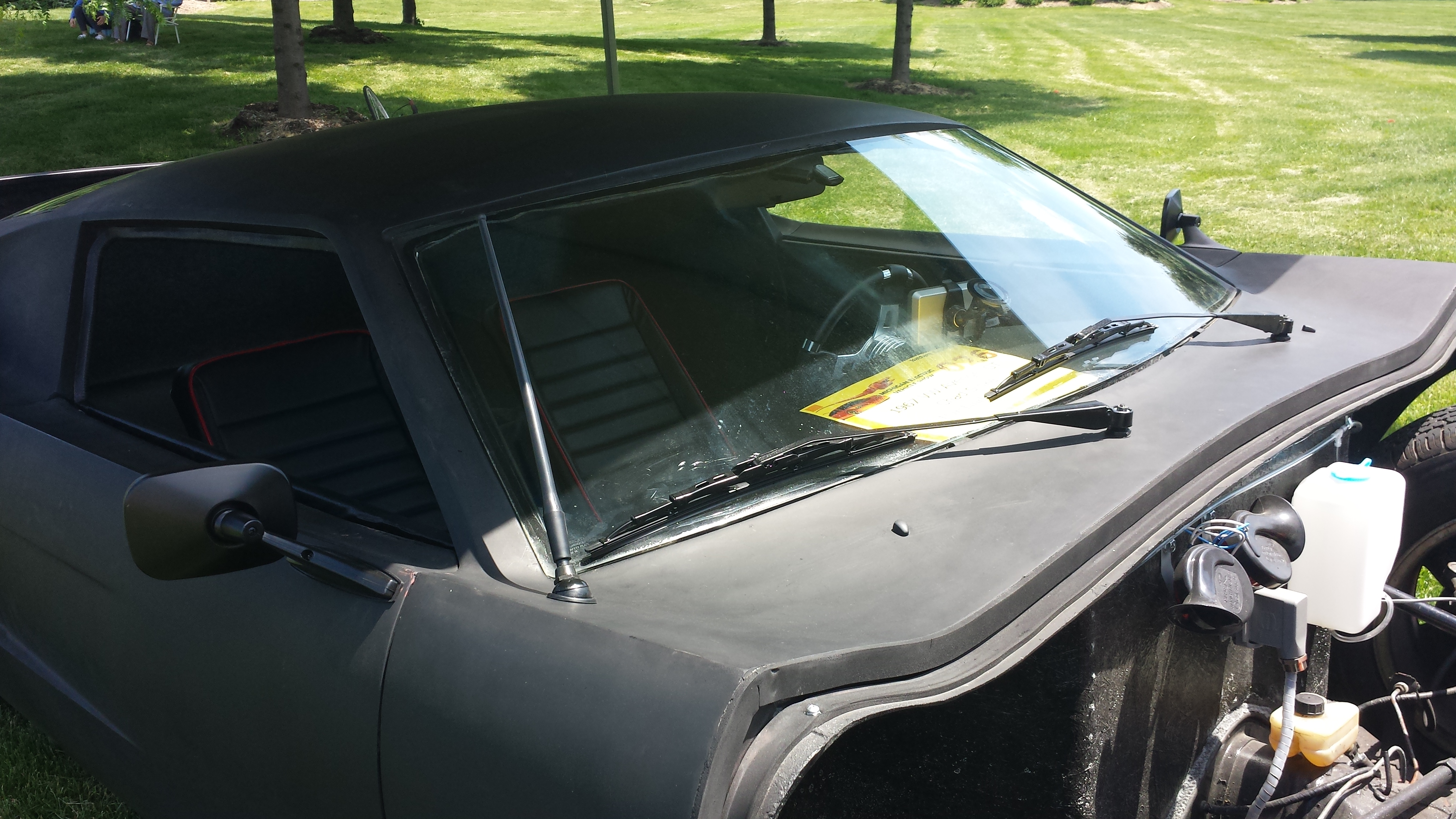

  • Windshield - 1966 Chevy Corvair
  • Back Glass - 1965 Ford Mustang Fastback
  • Side Glass - 2006 Chevy Tahoe Rear window power regulators, with custom fitted lexan windows

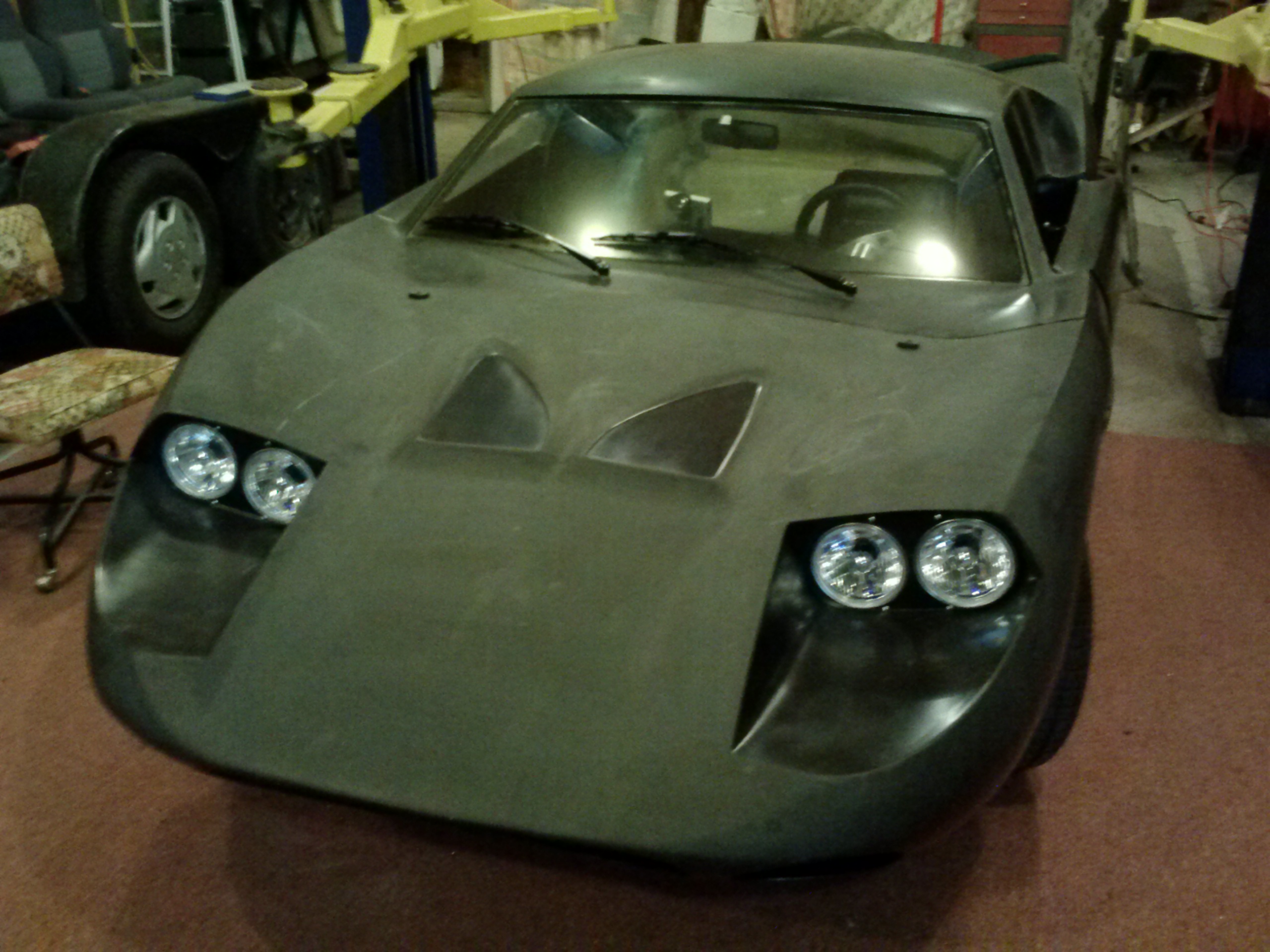

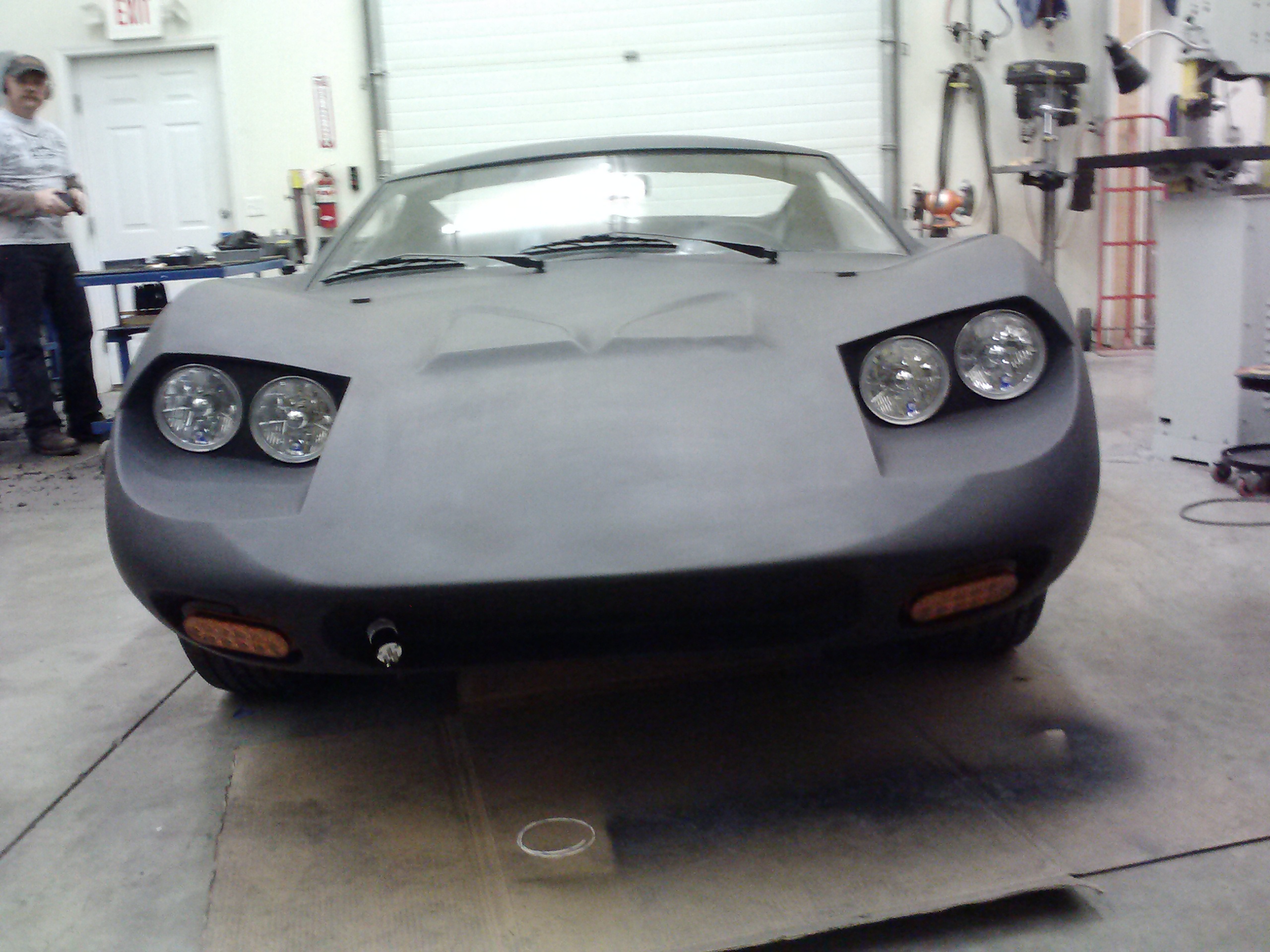

  • Head Lights - 1958 Chevy Biscayne Buckets, with sealed beam to H4 conversion kit and LED Bulbs
  • Windshield Wipers - 1978 VW Rabbit custom fit to Avenger GT Body

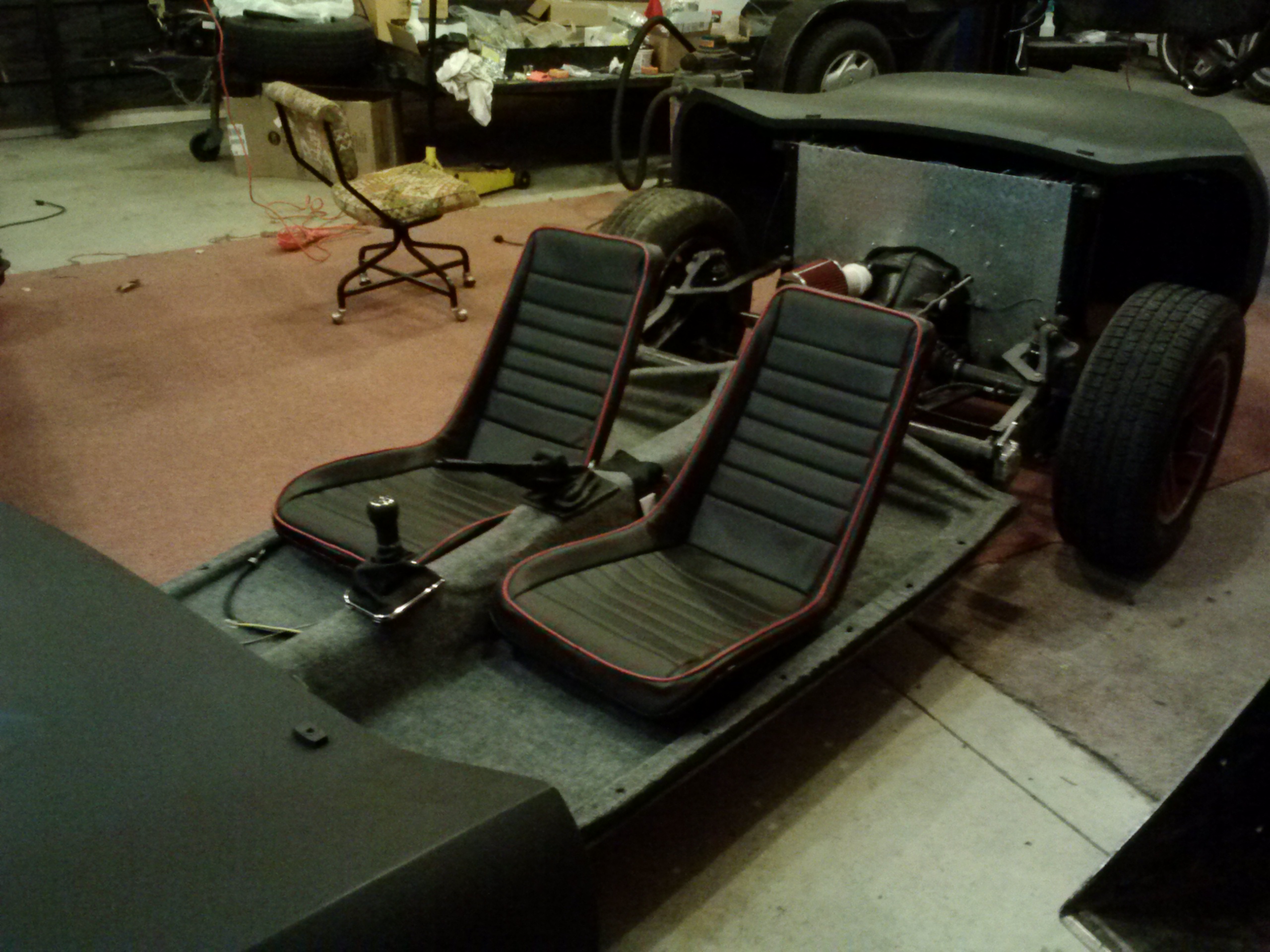

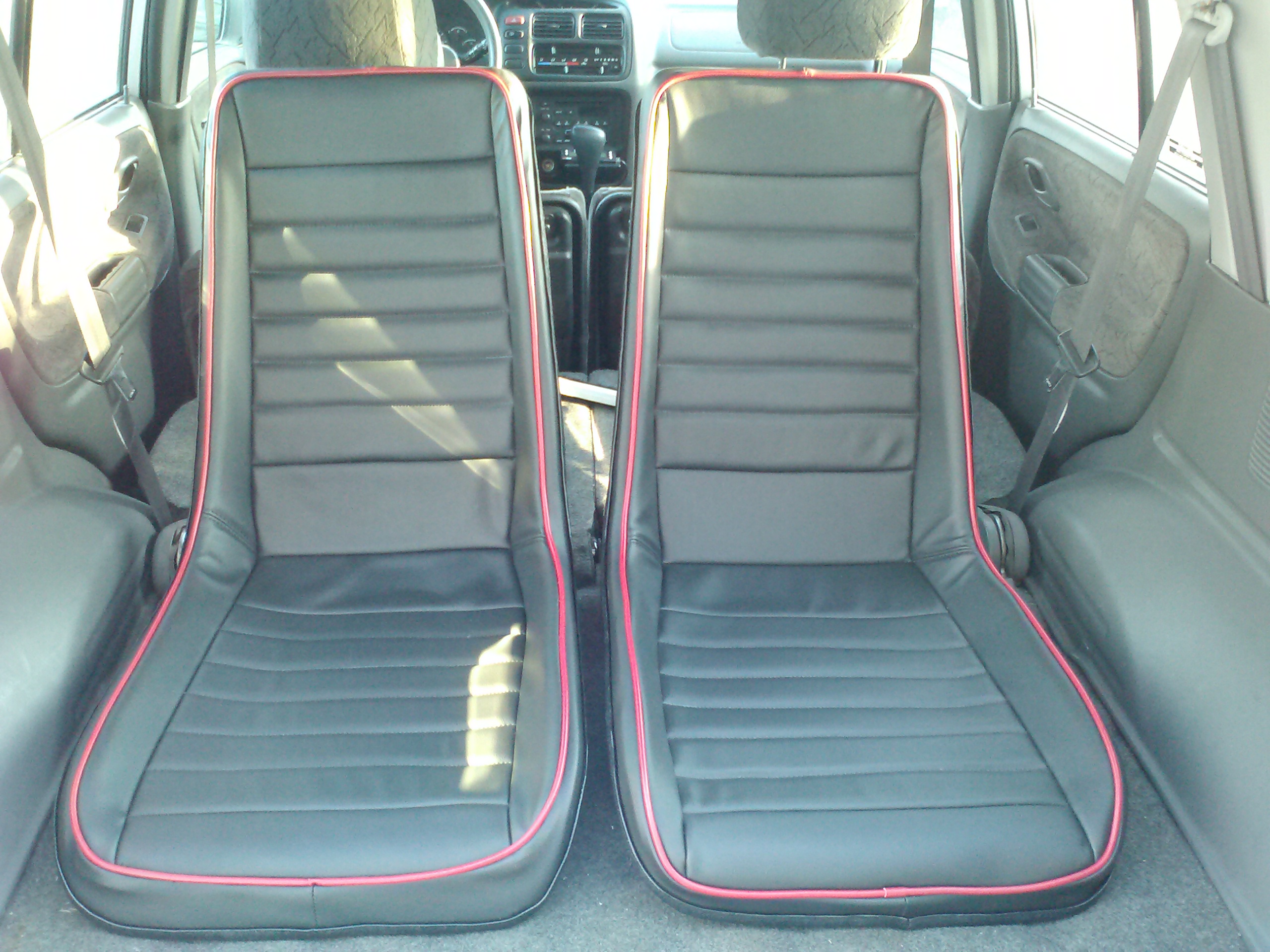

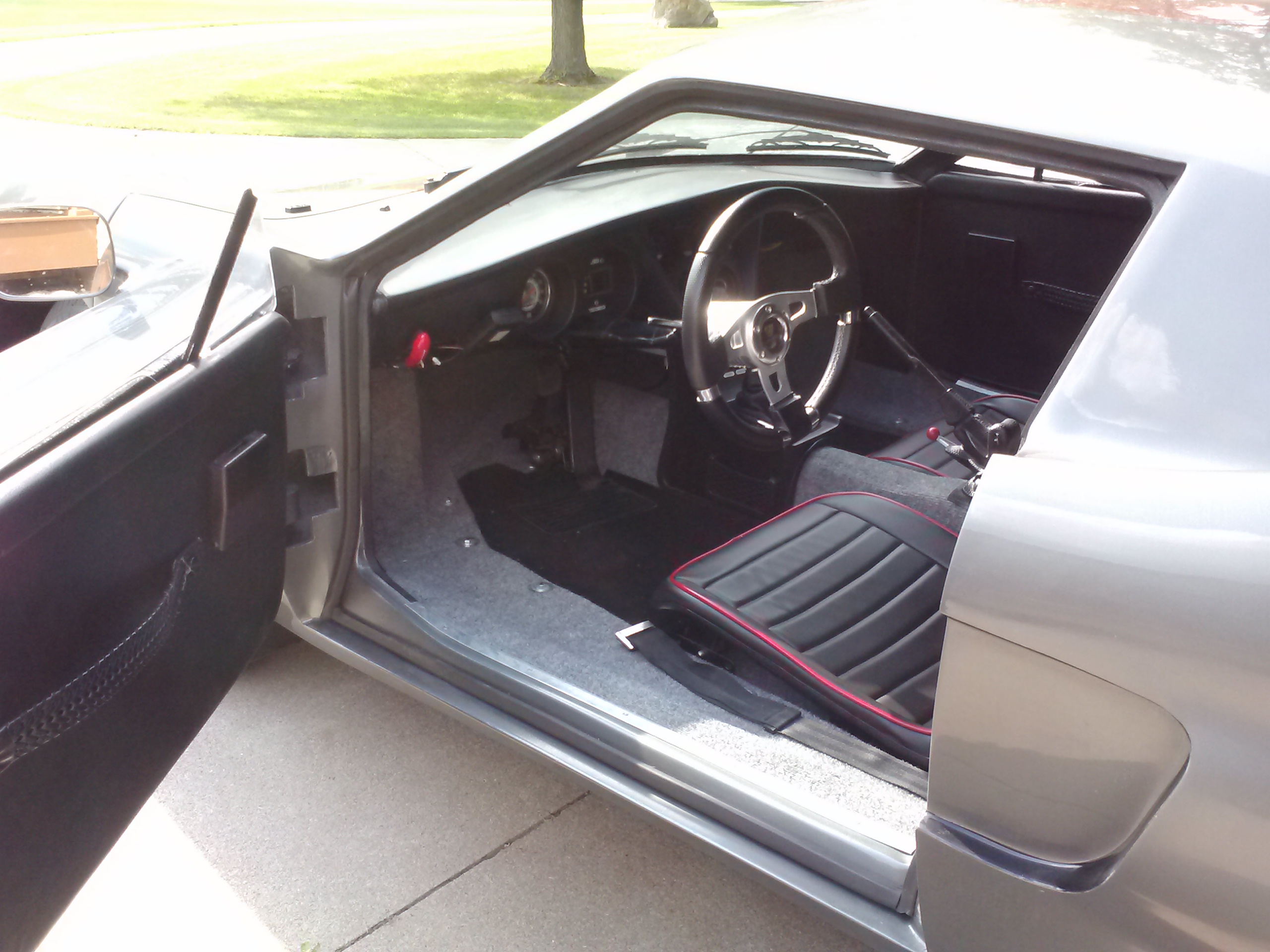

  • Seats - Custom made fiberglass bucket seats

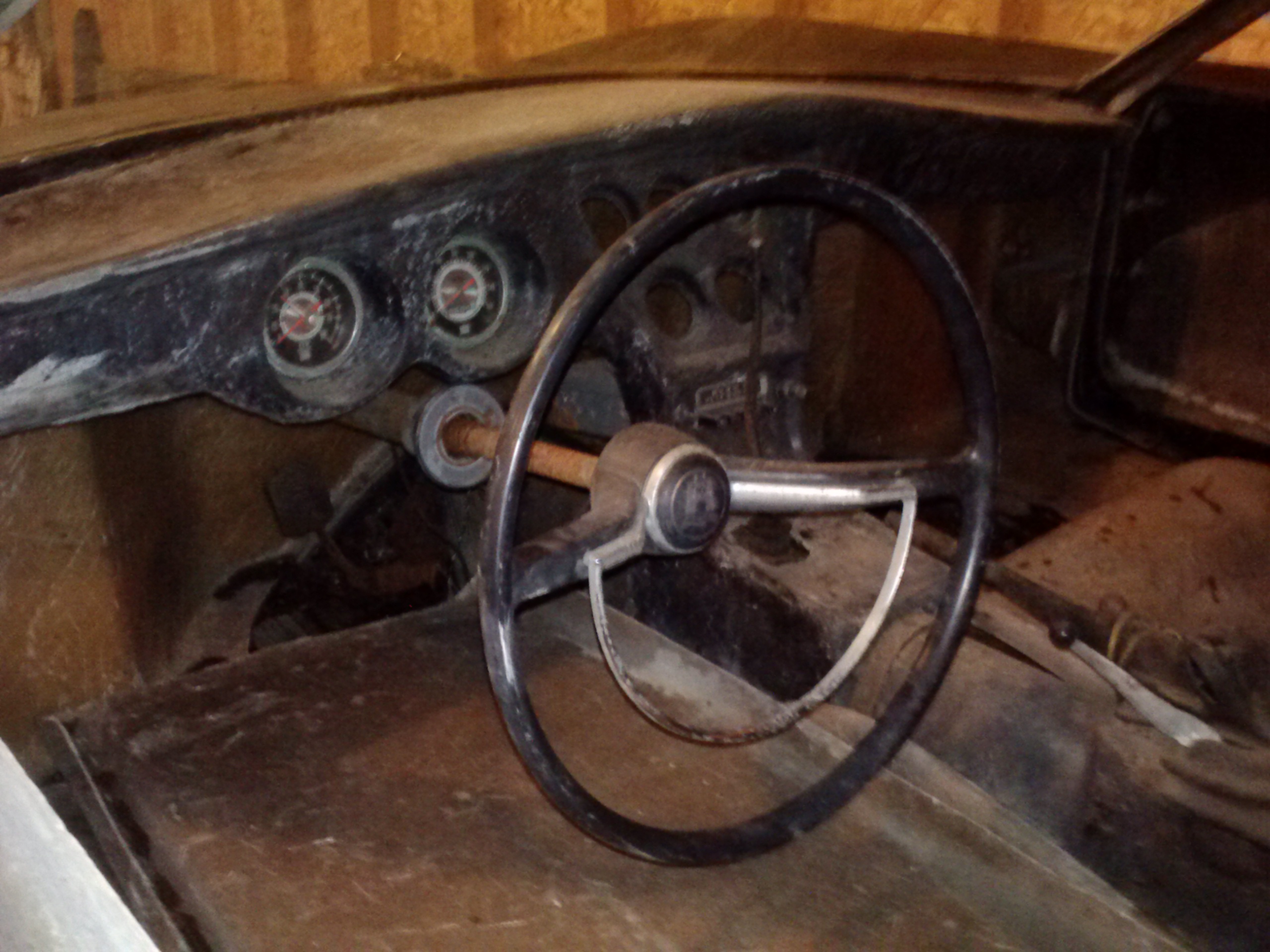

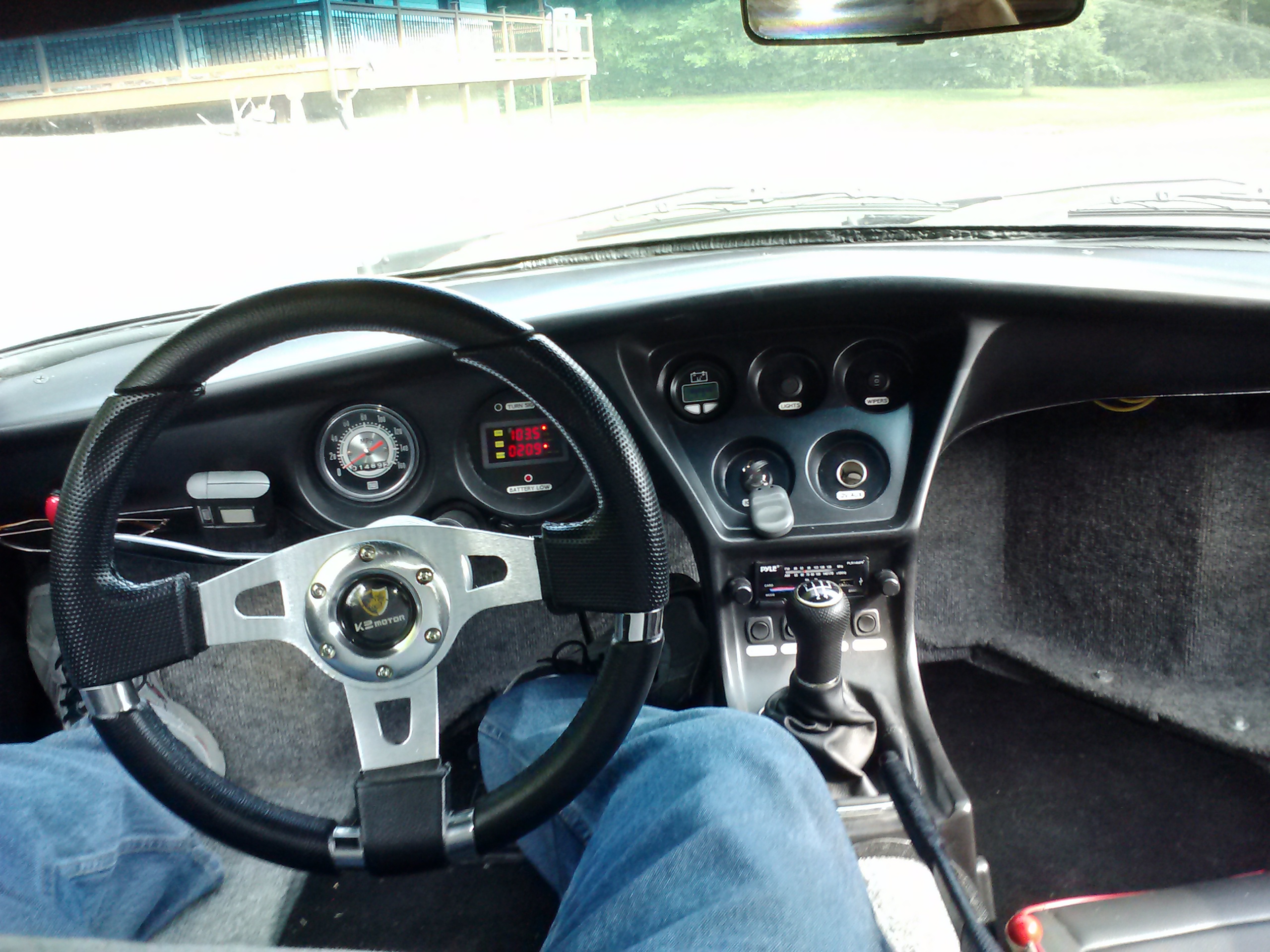

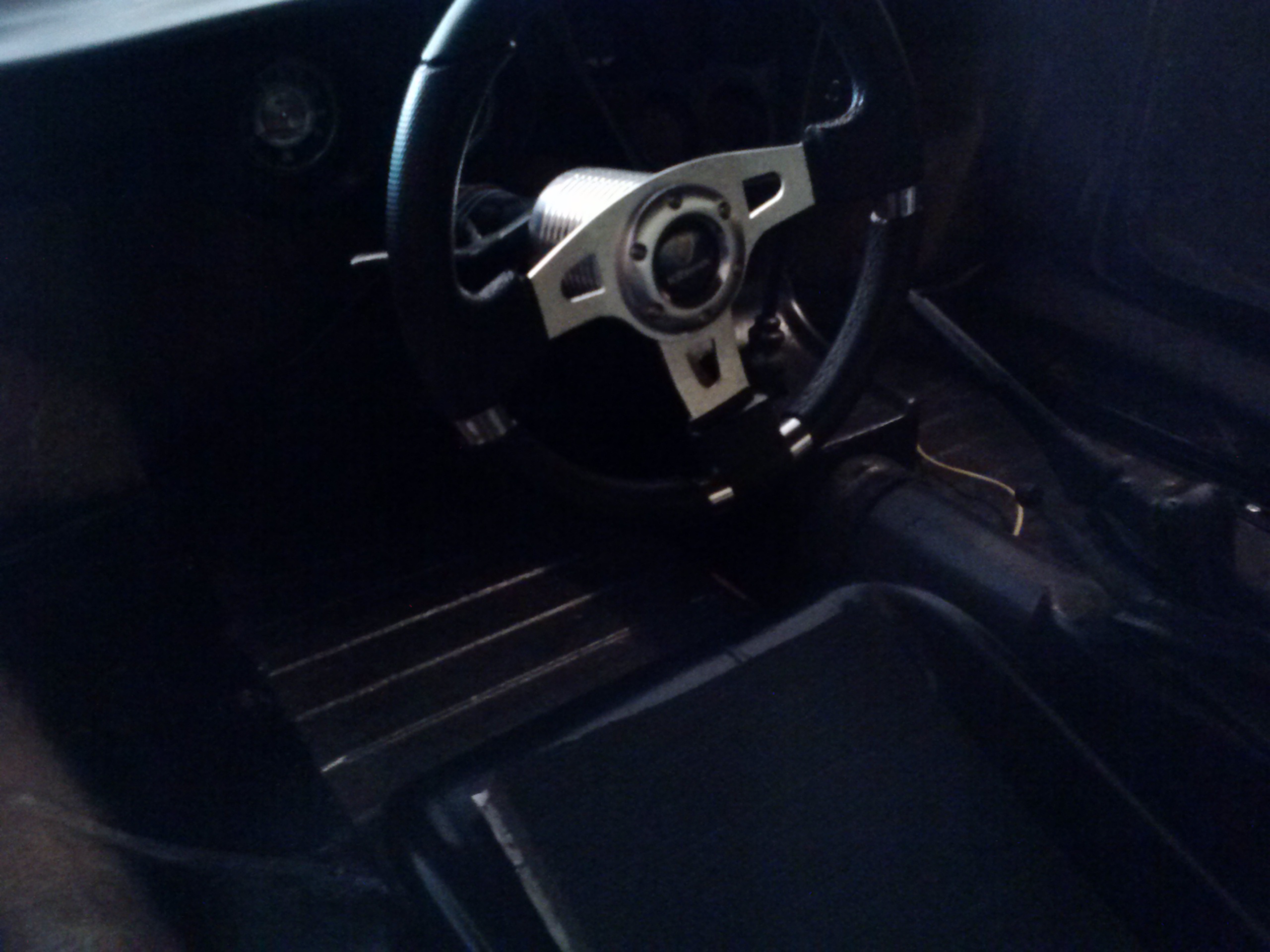

  • Dash - Custom gage package
  • Interior - Custom made
  • Remote - Remote Keyless Entry, Remote Ignition, Remote Power Windows

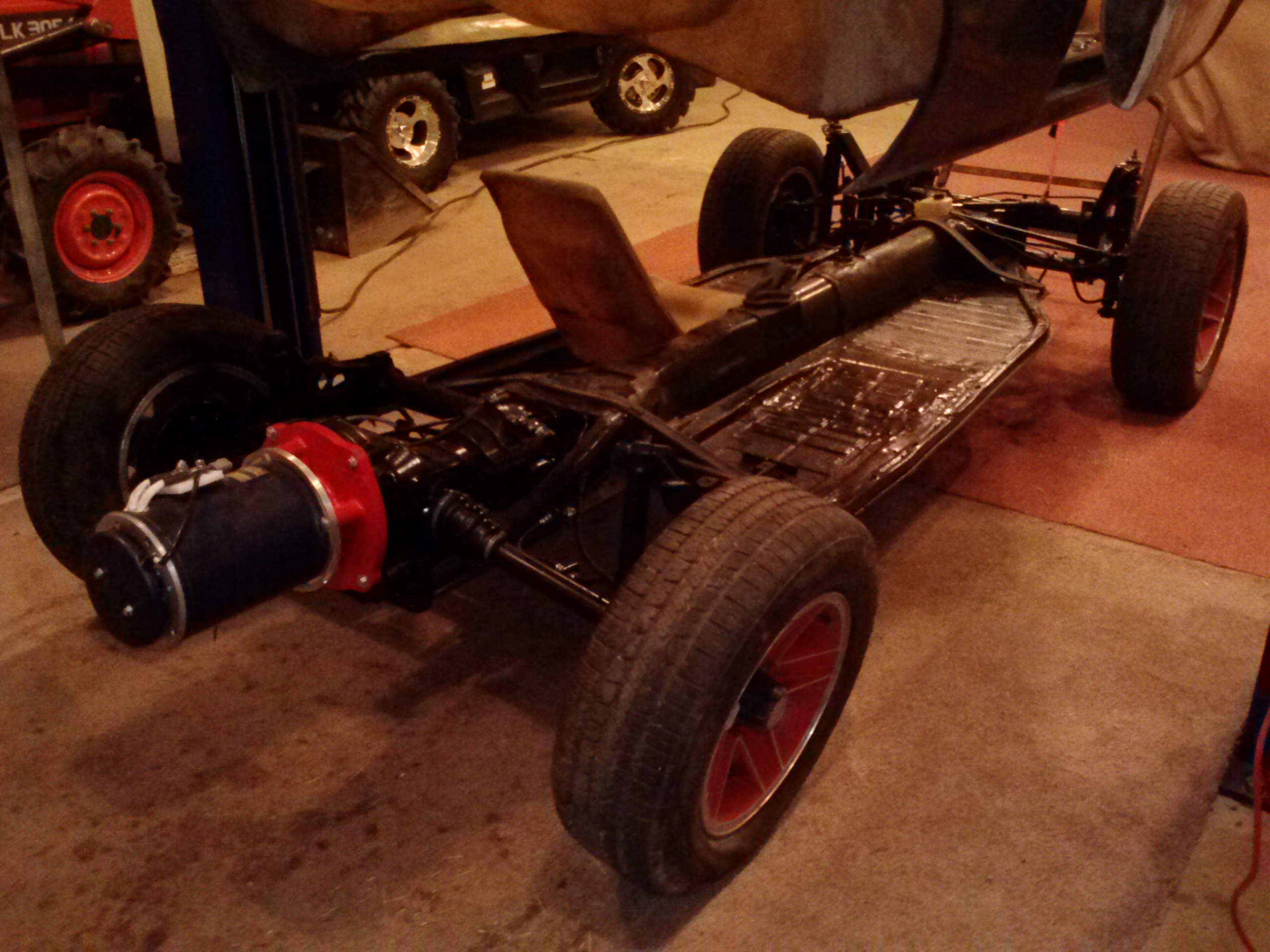

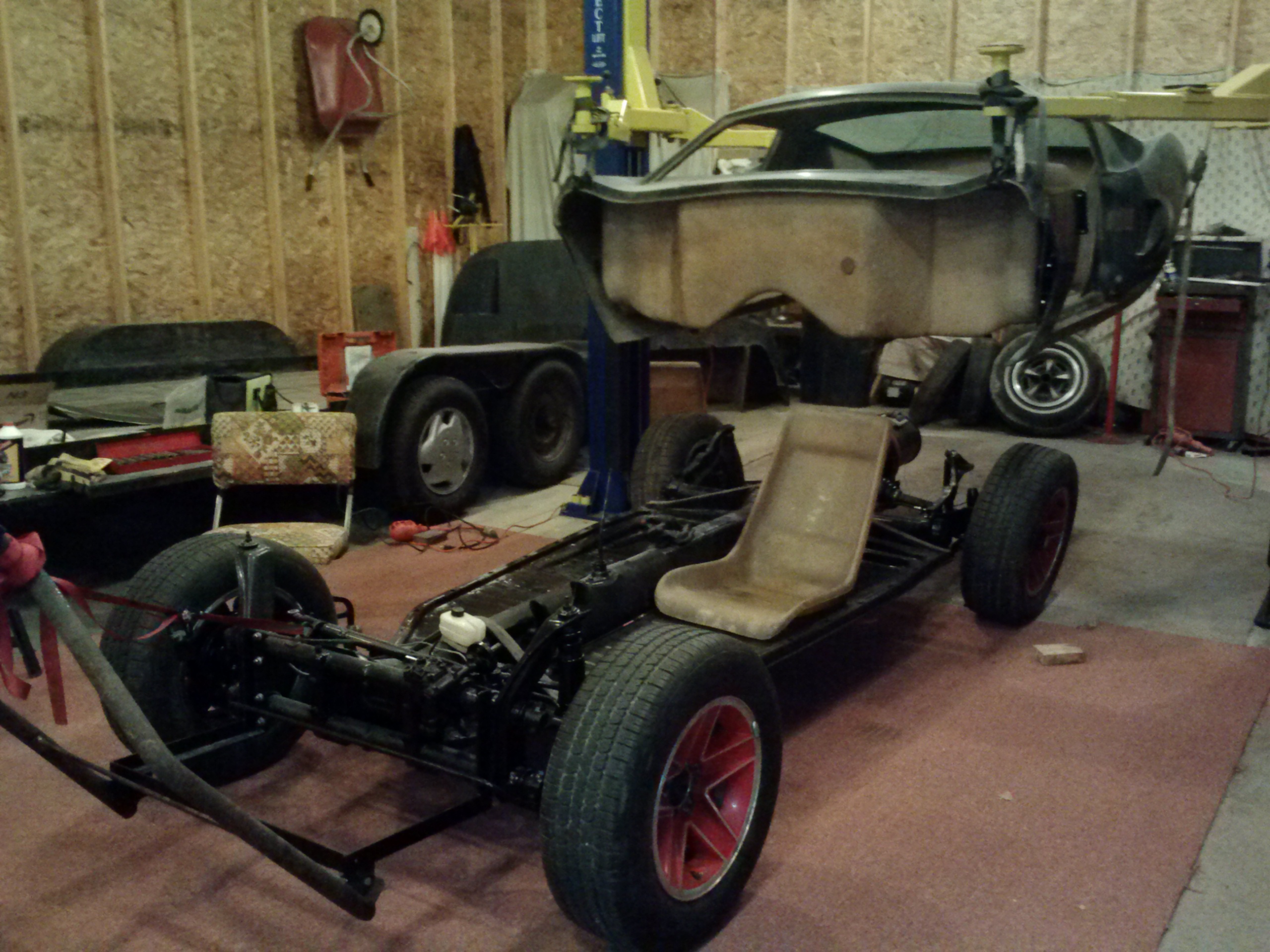

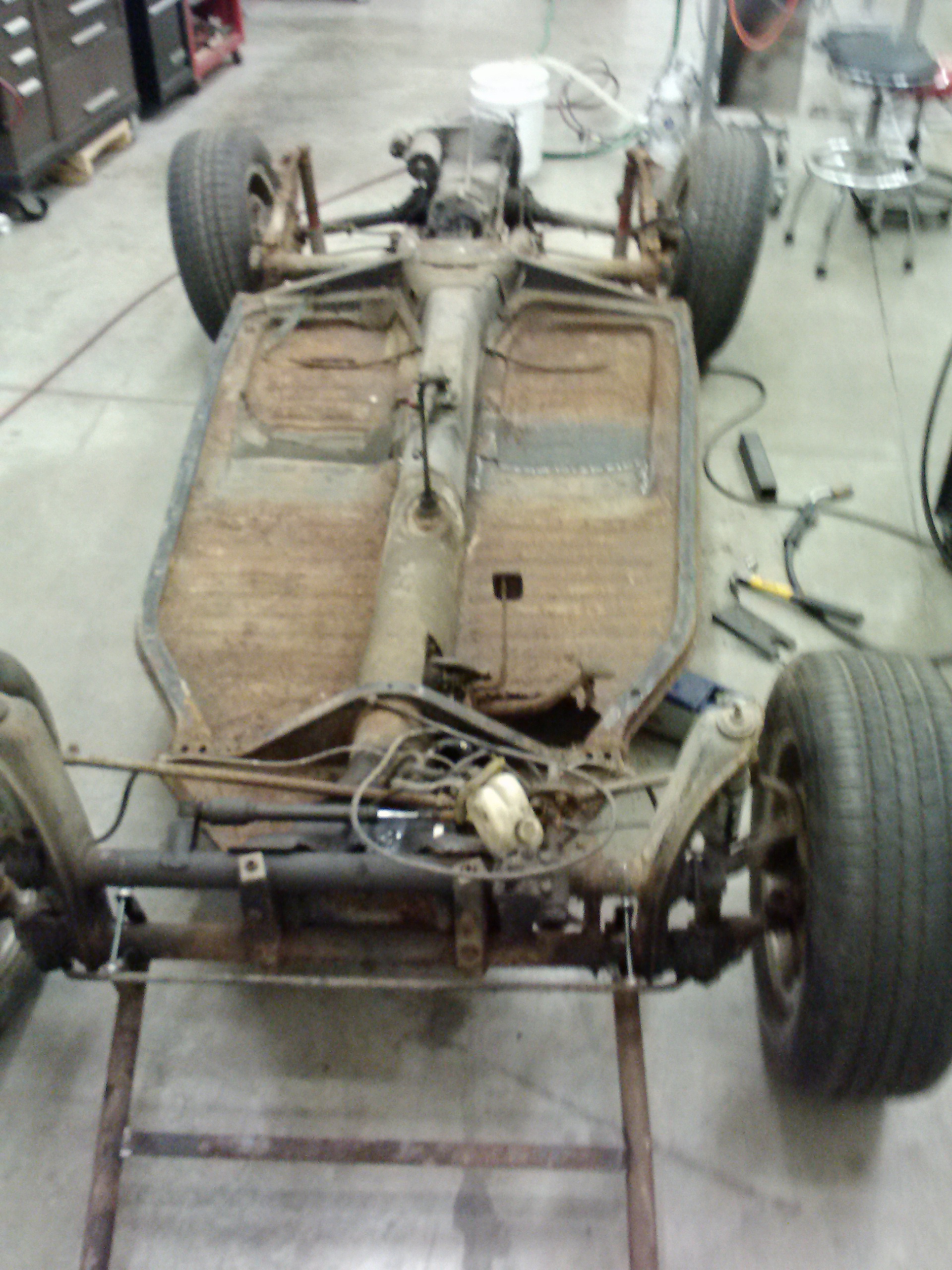

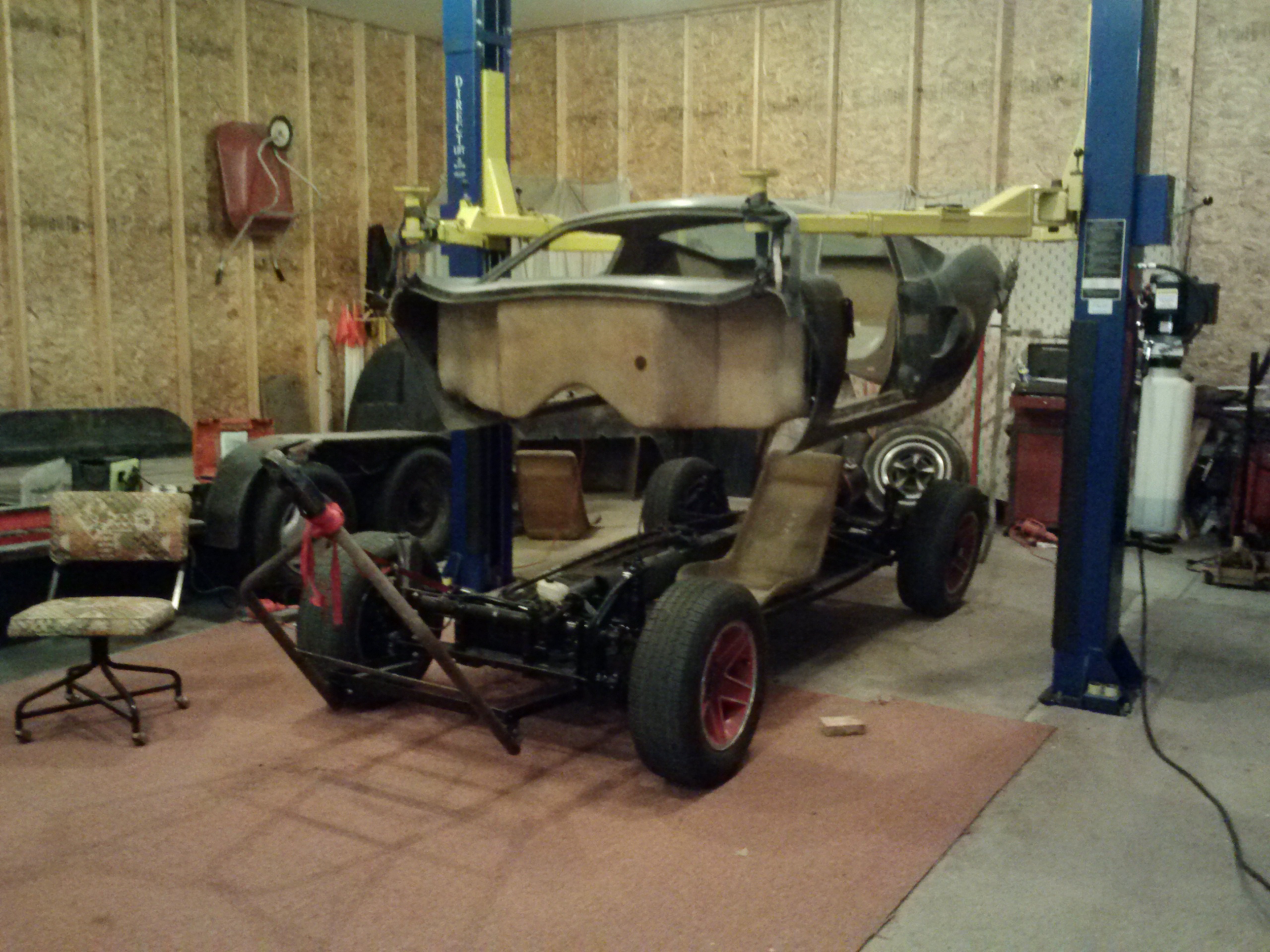

Chassis:

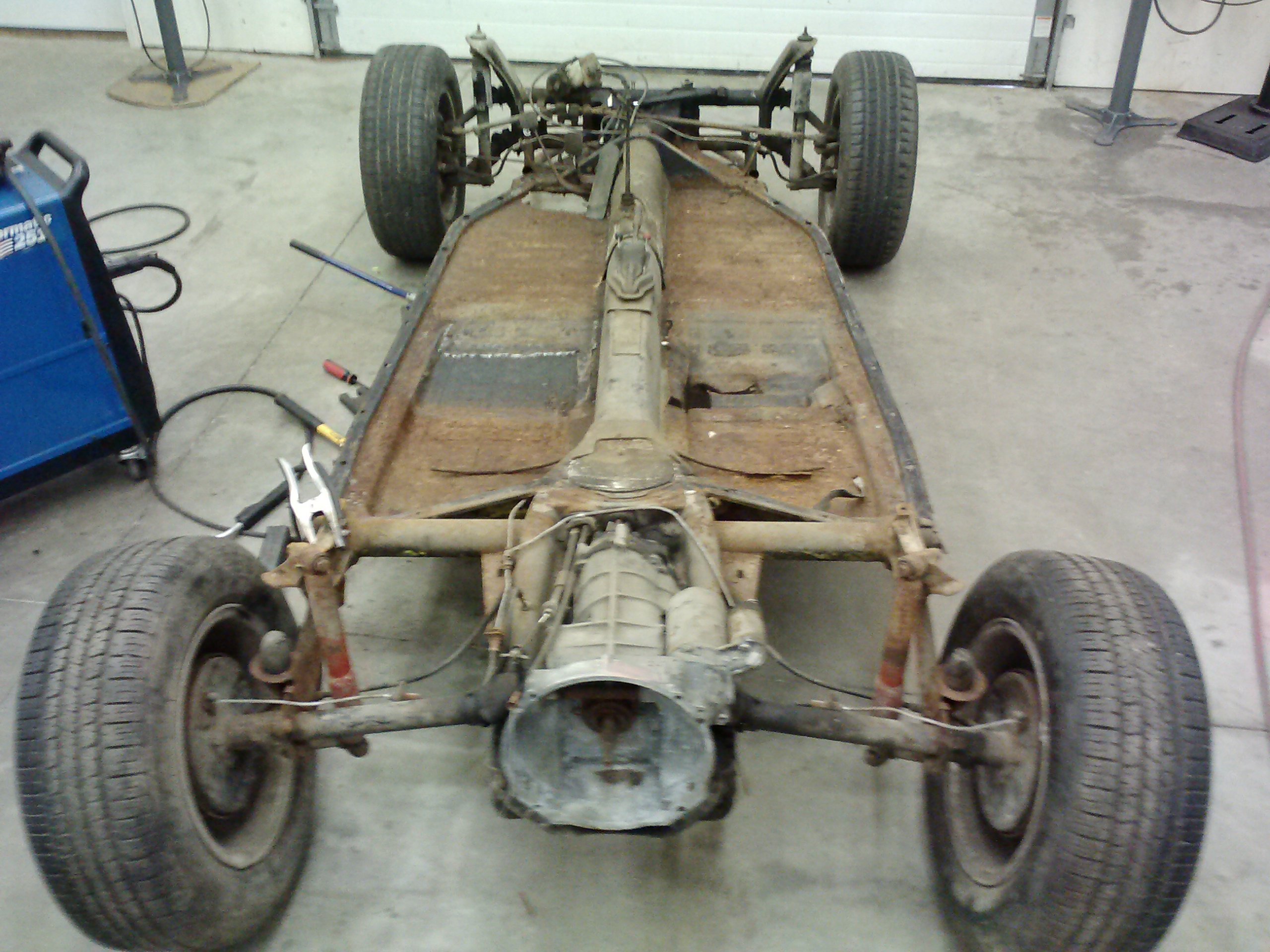

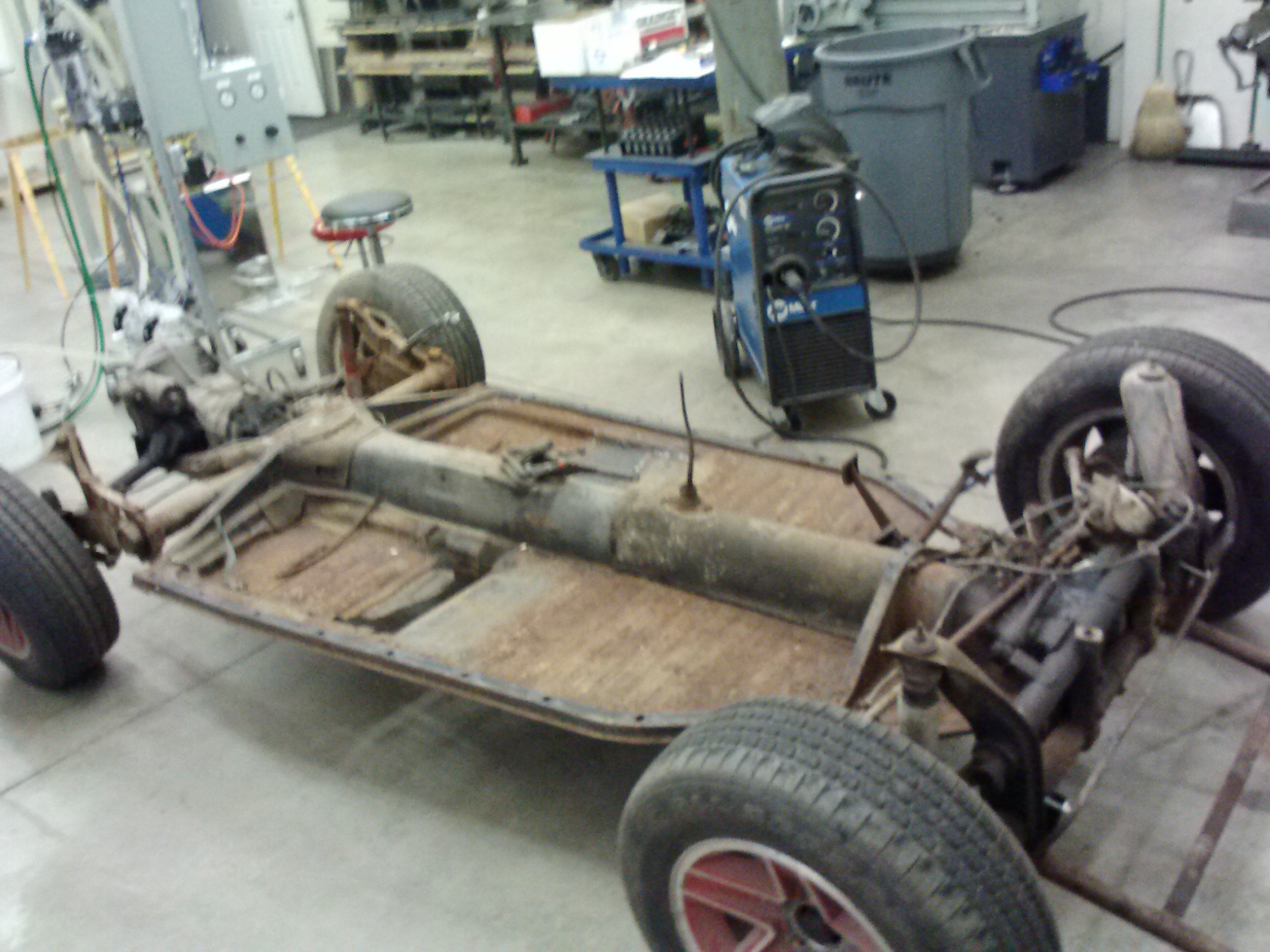

  • 1967 VW Beetle Swing Axle
  • Transmission - 1967 VW Beetle Manual 4 speed Trans-axle (with clutch removed)
  • Wheels - 1980s Chevy IROC-Z Camaro
  • Brakes - Regenerative Dynamic Braking with Upgraded Hydraulic Front Disc Brakes

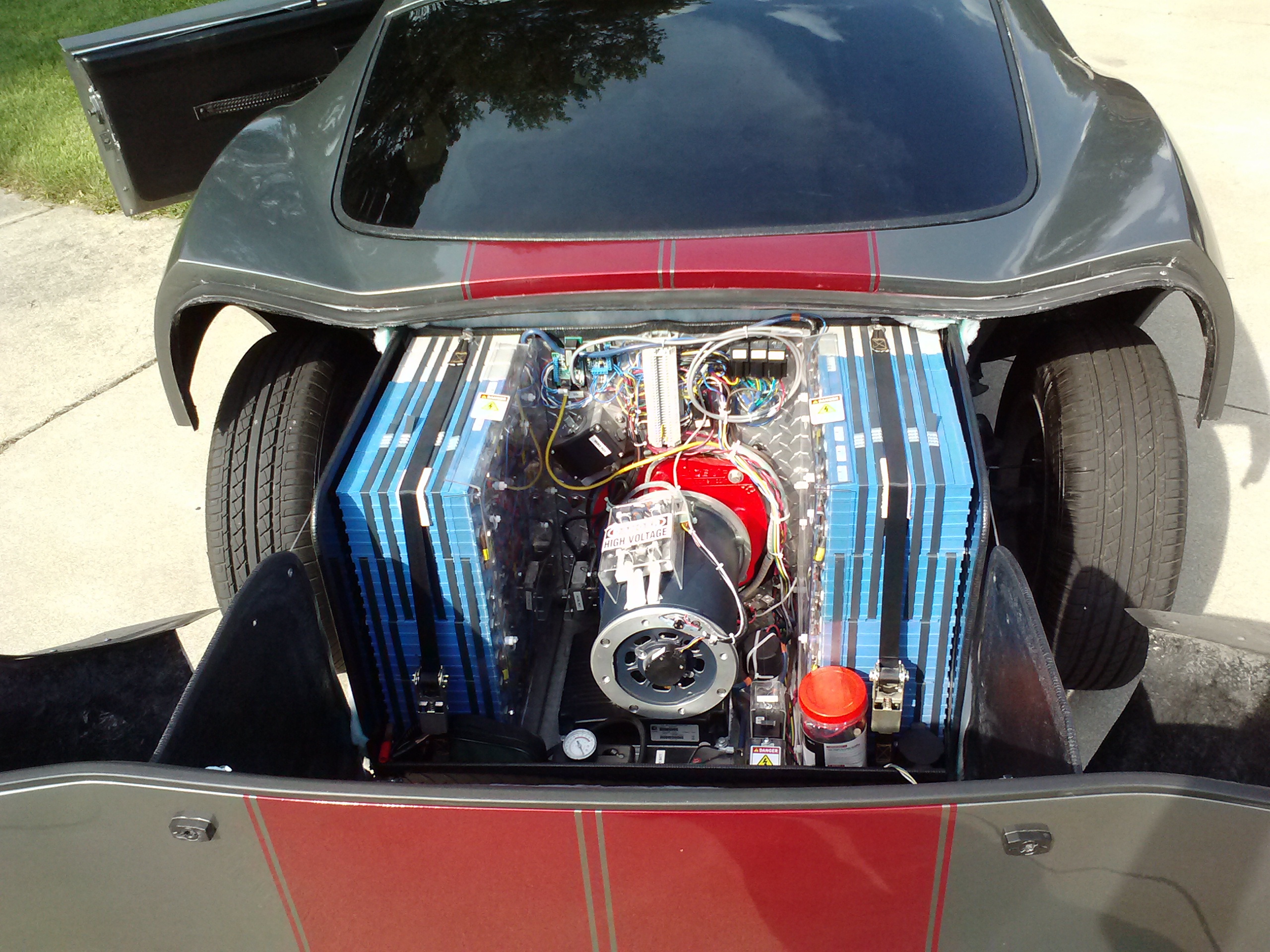

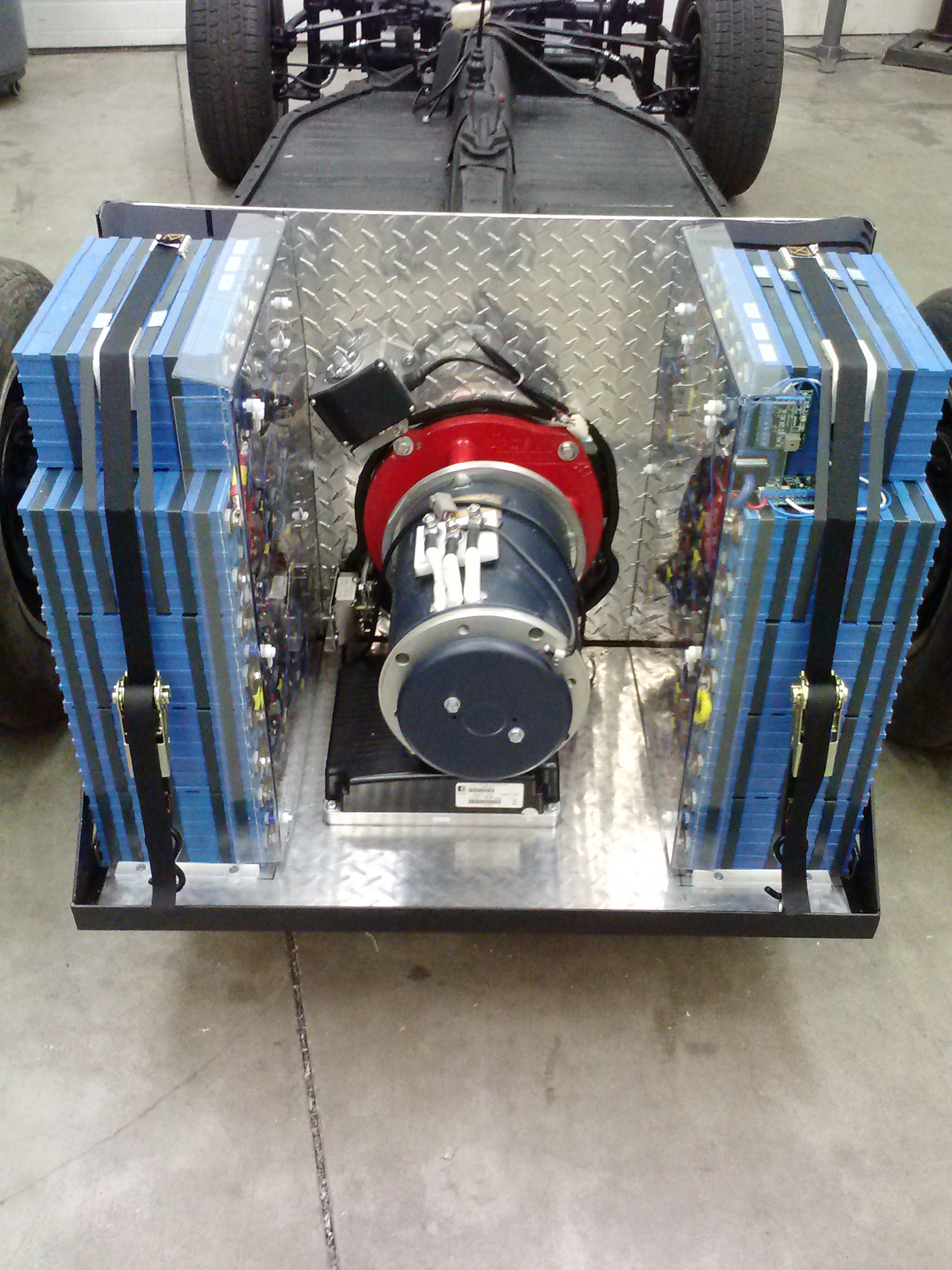

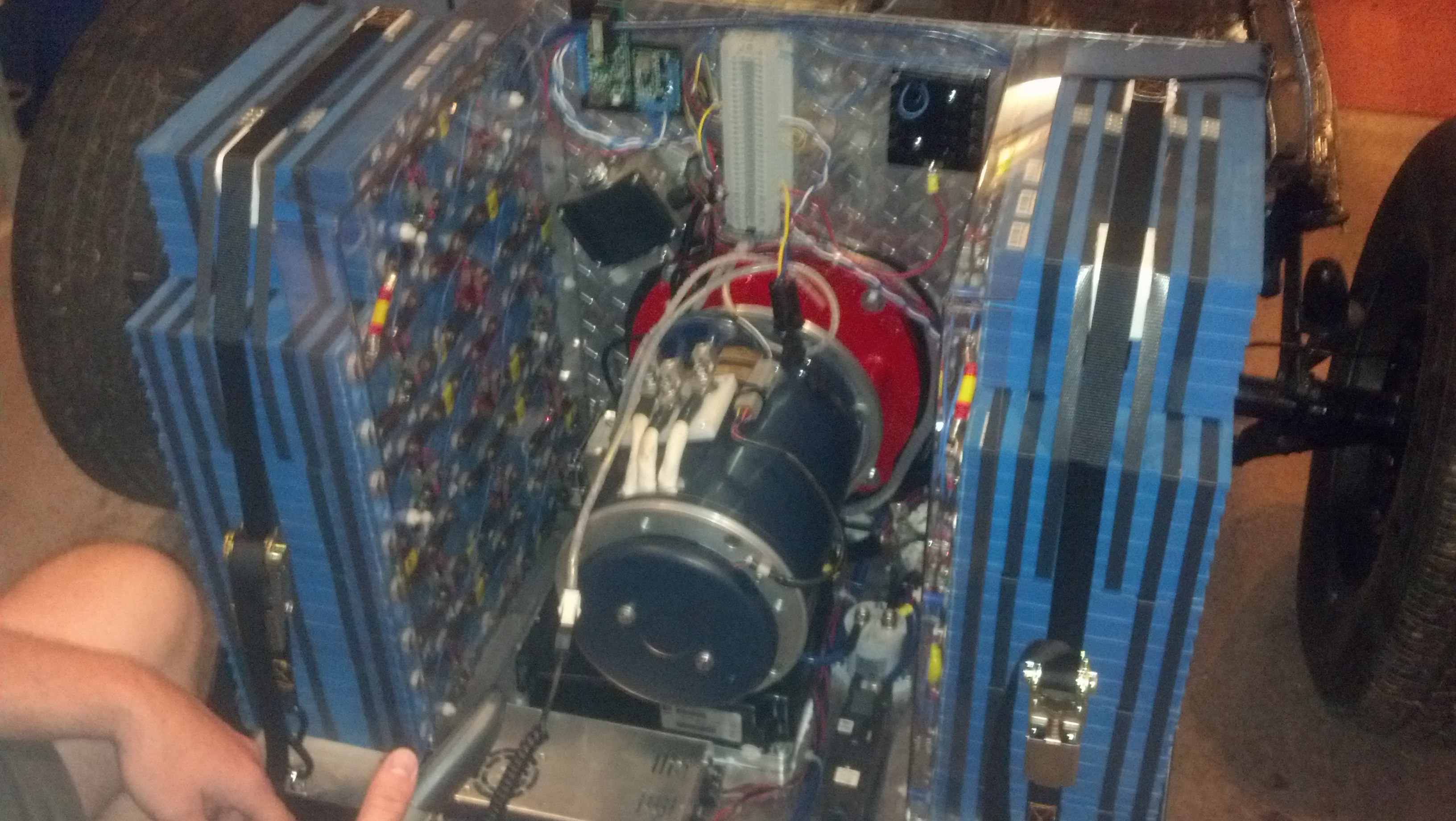

Power Plant:

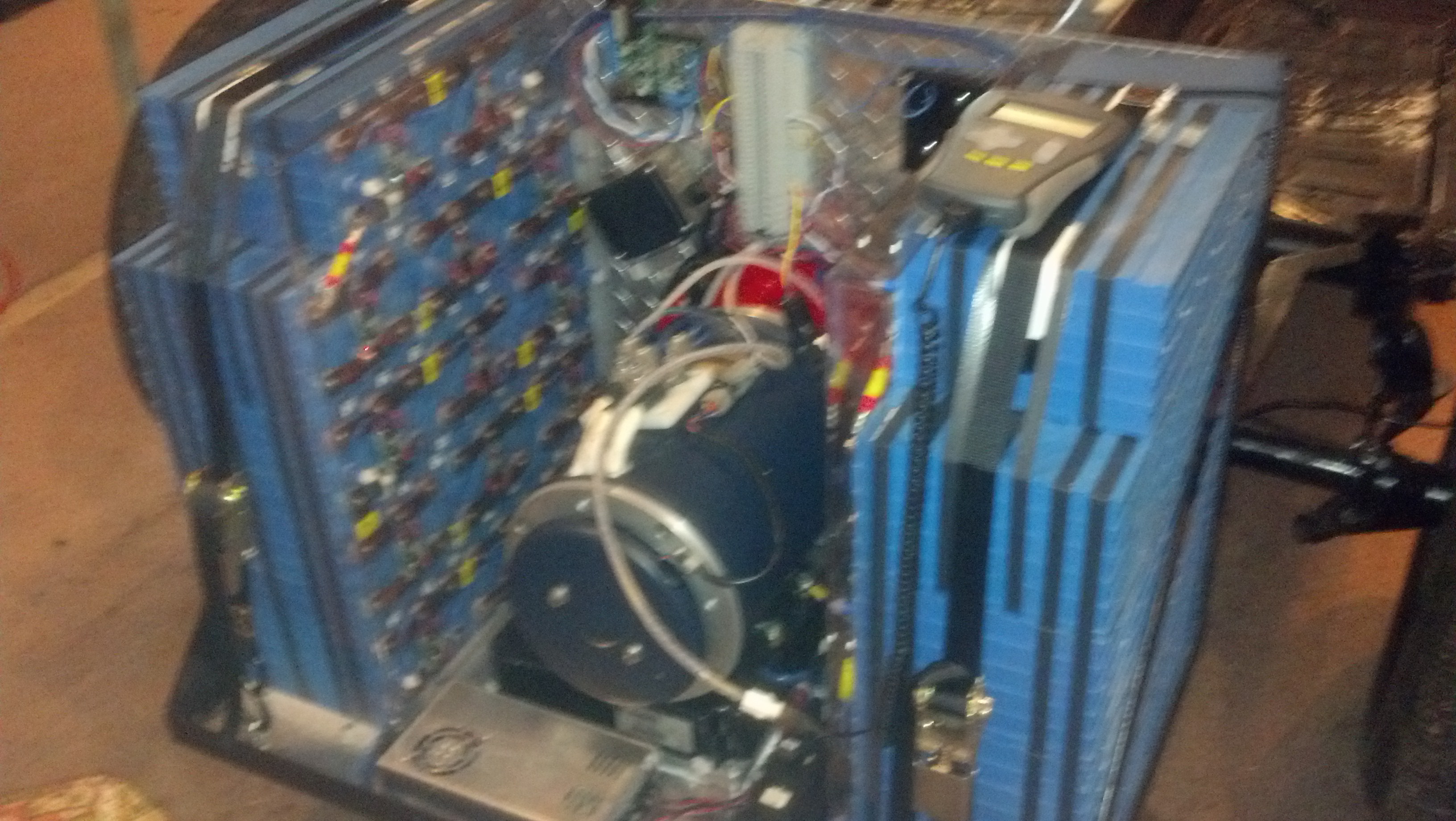

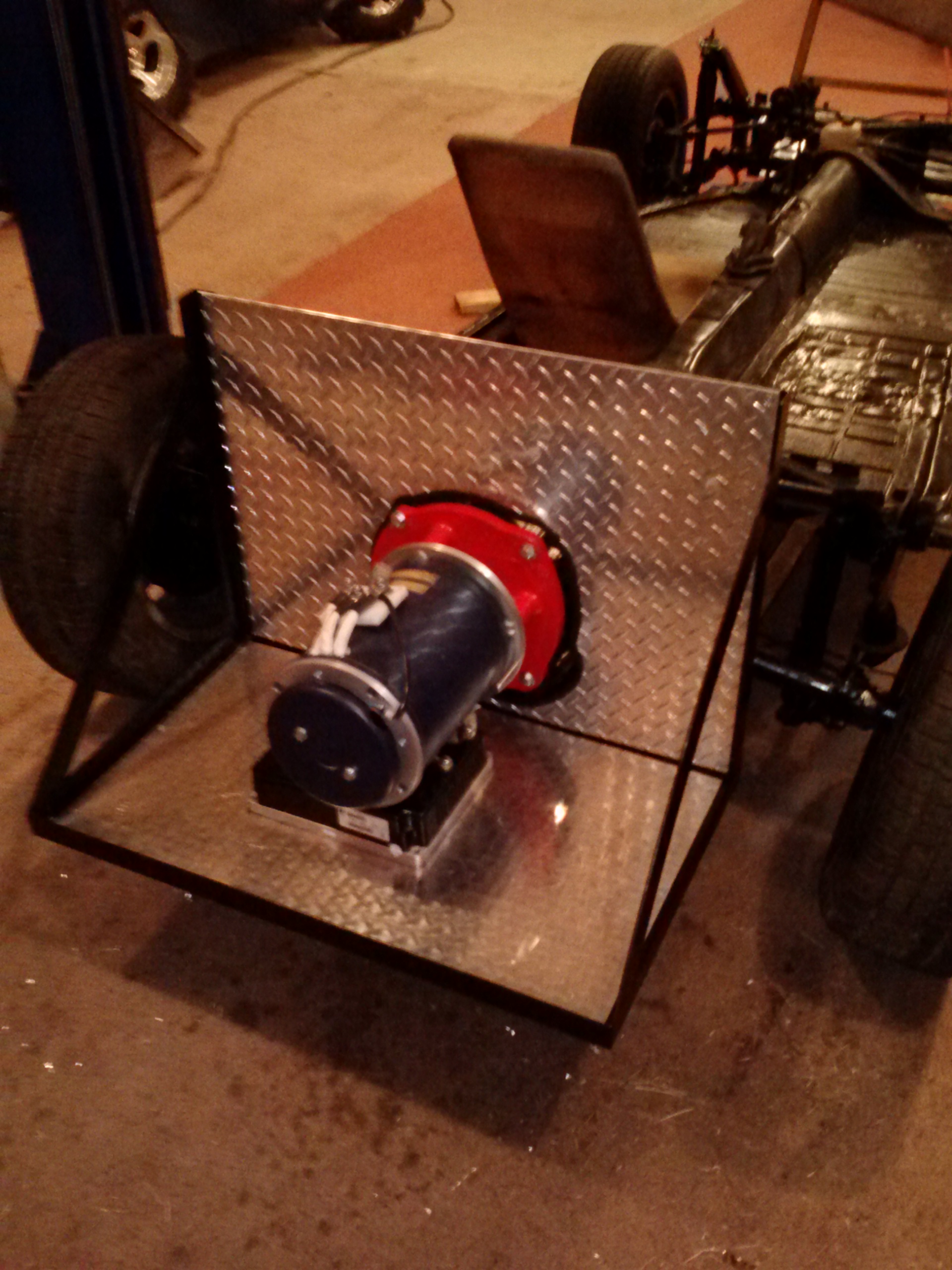

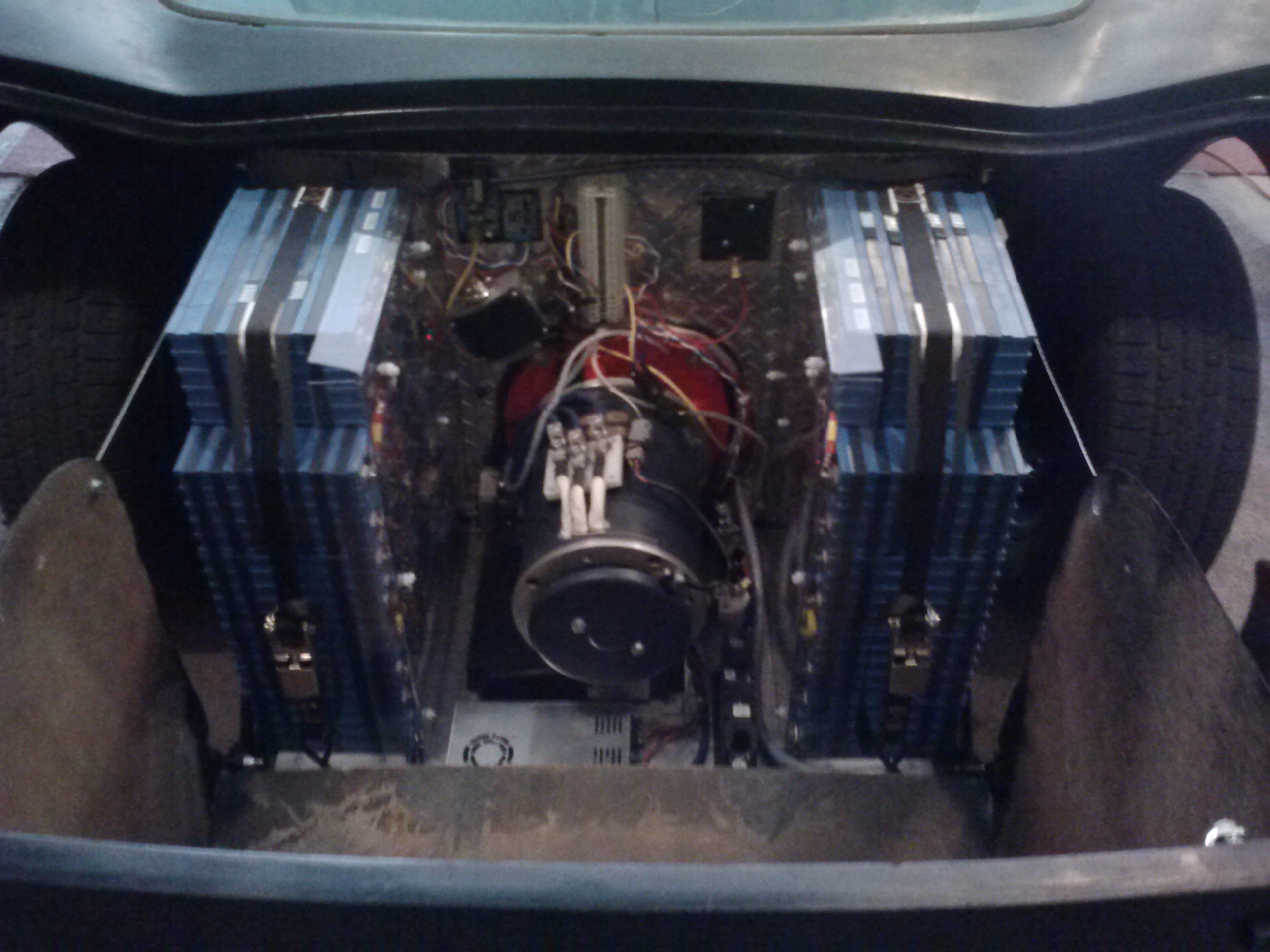

  • Motor - Electric, HPEV AC-31 Brushless - 3phase motor, 70hp, 130ft/lb of torque
  • Controller - Curtis 1238 EV OEM controller, 550amps, 105volts

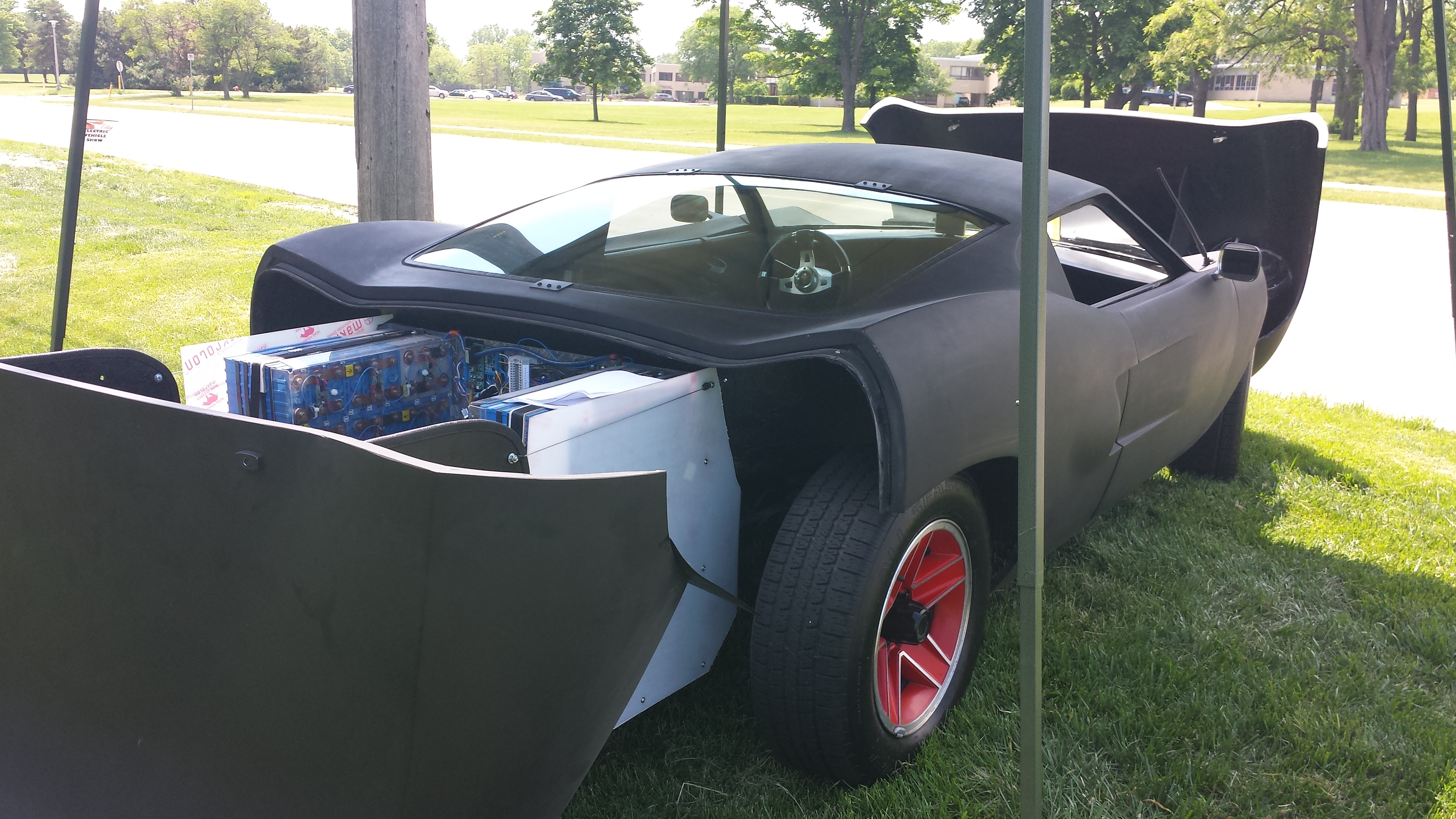

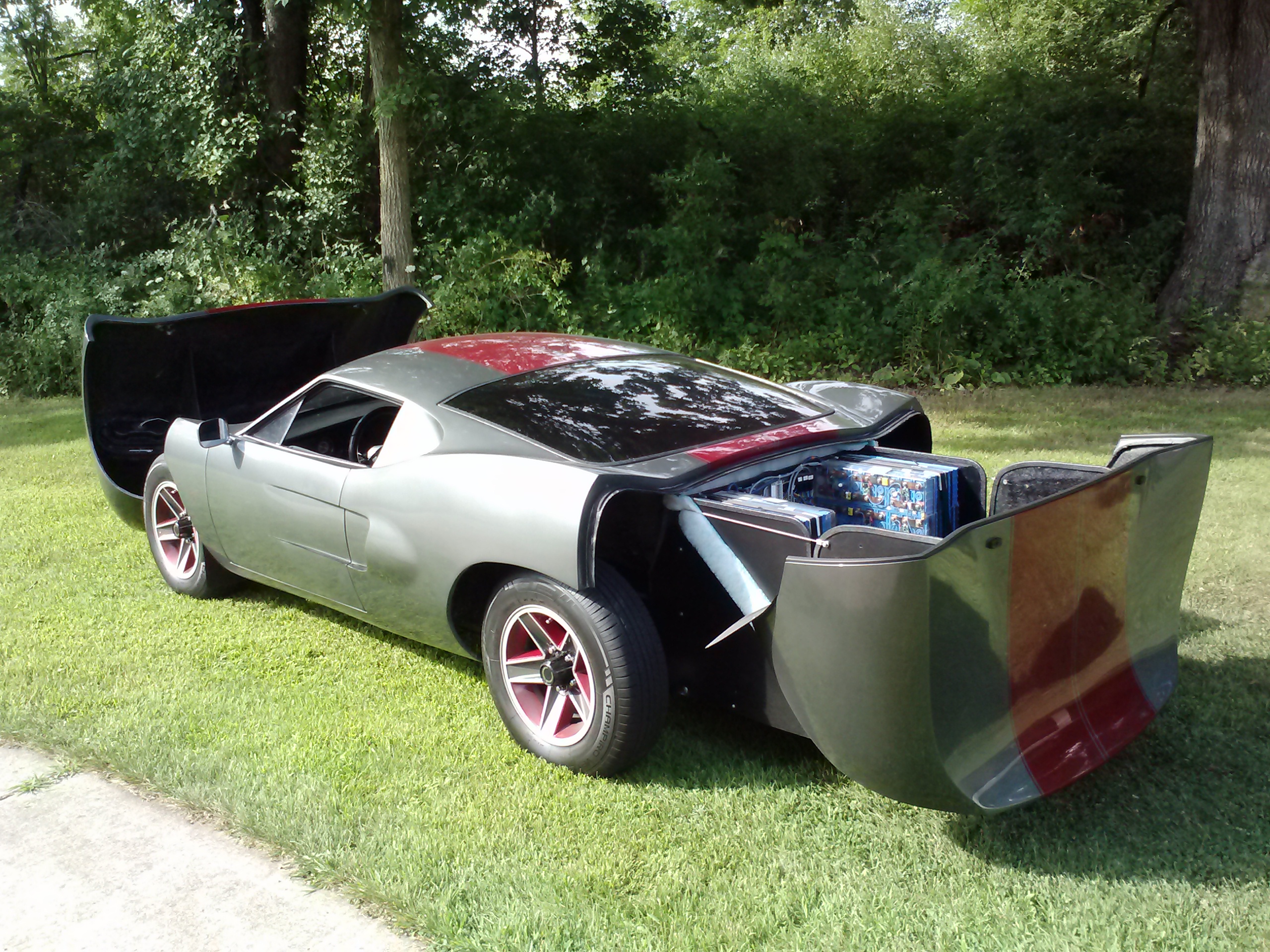

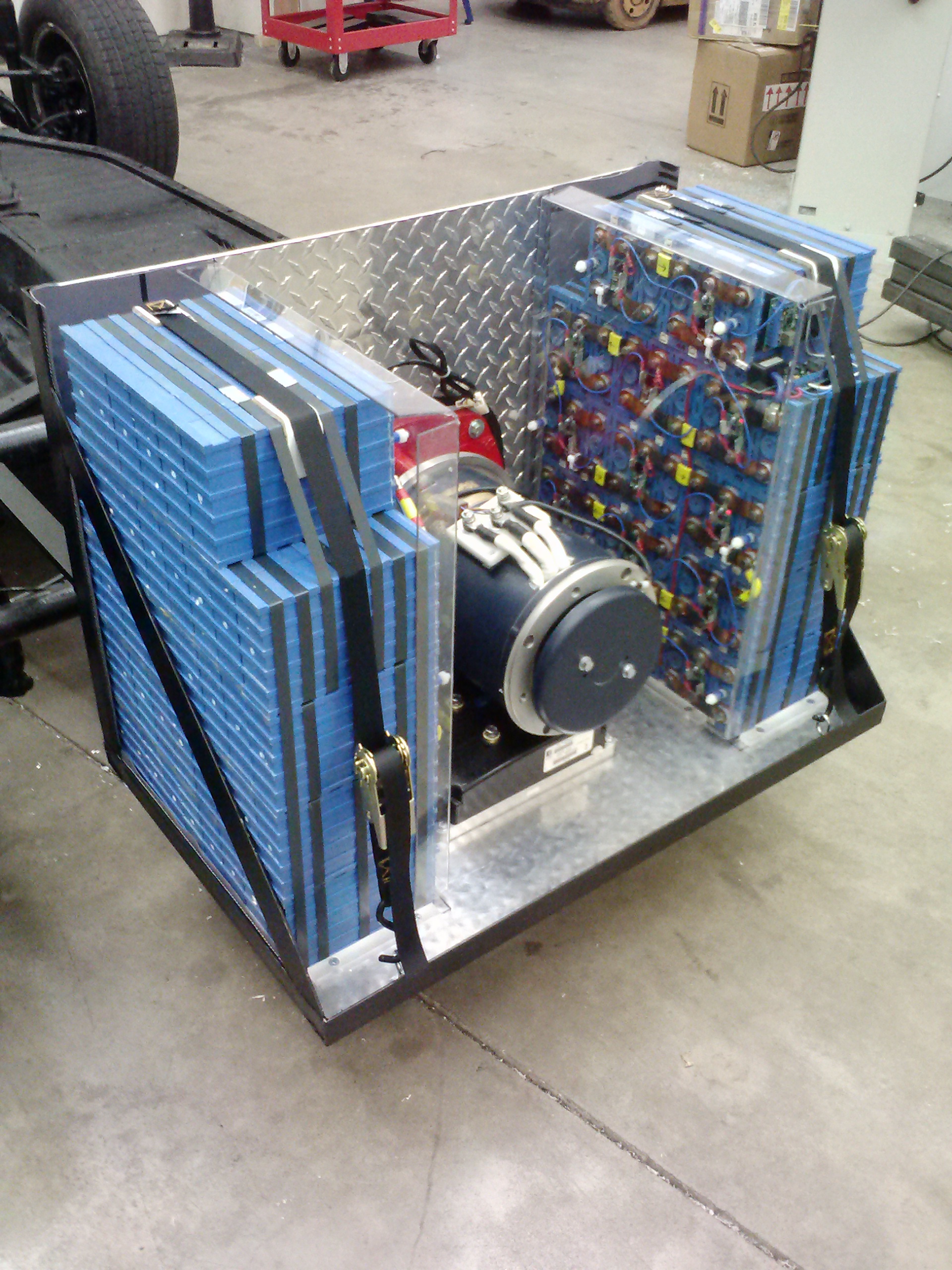

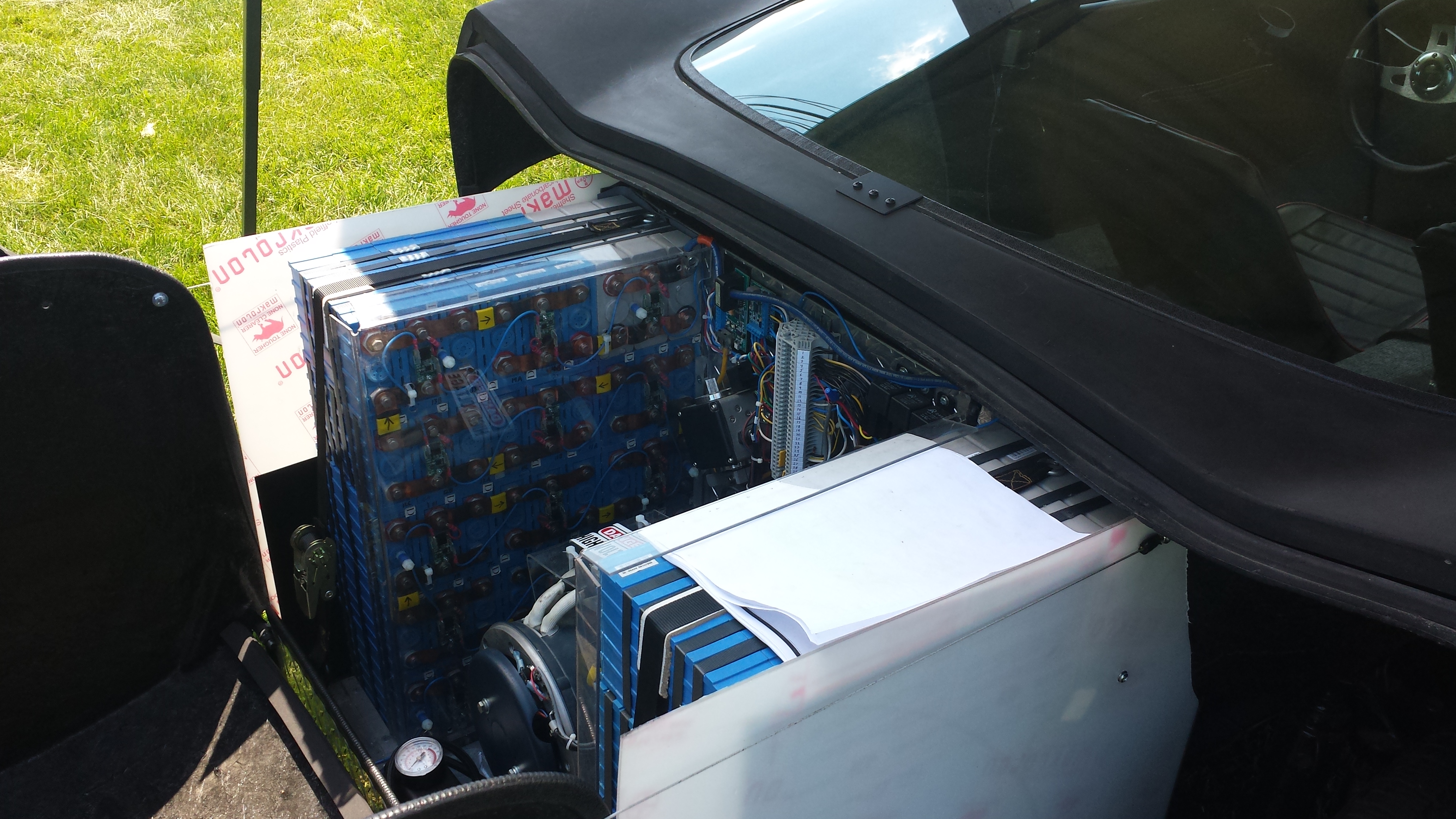

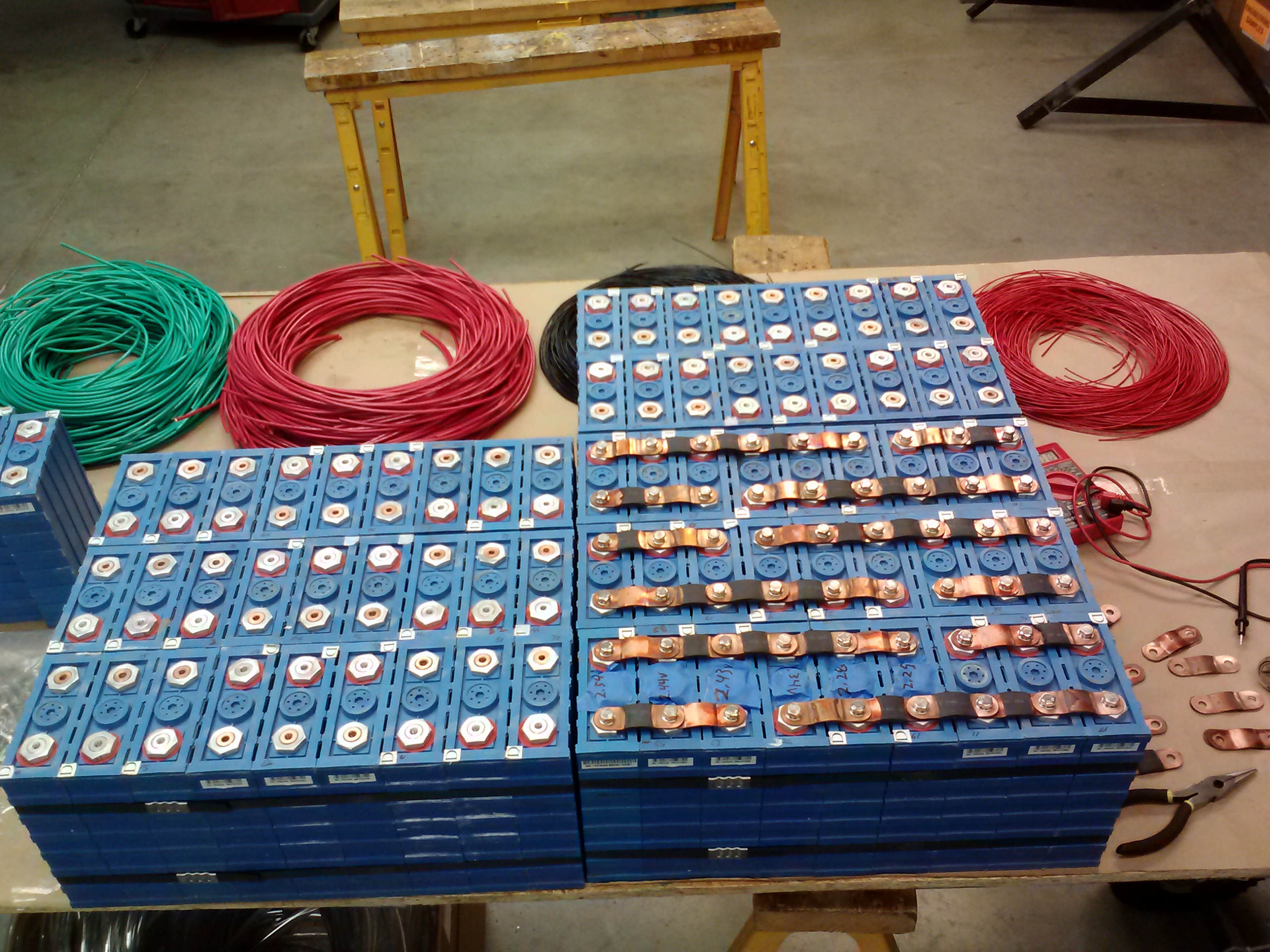

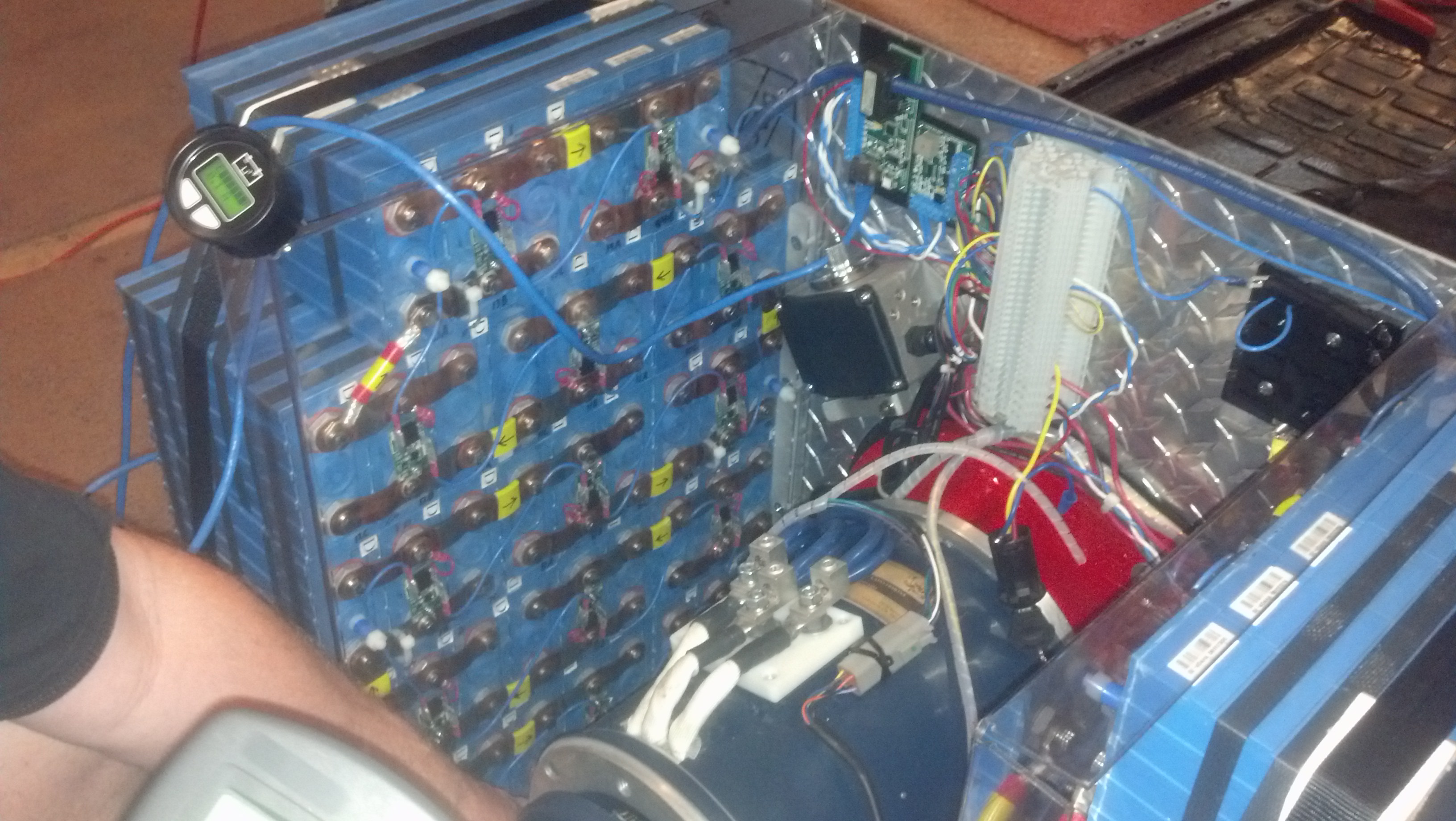

  • Batteries - CALB, LifePO4, 12Kwatt, 90-40Ahr batteries, configured into a 100v, 120Ahr Pack
  • Battery Management System (BMS) - CleanPowerAuto Mini BMS V2

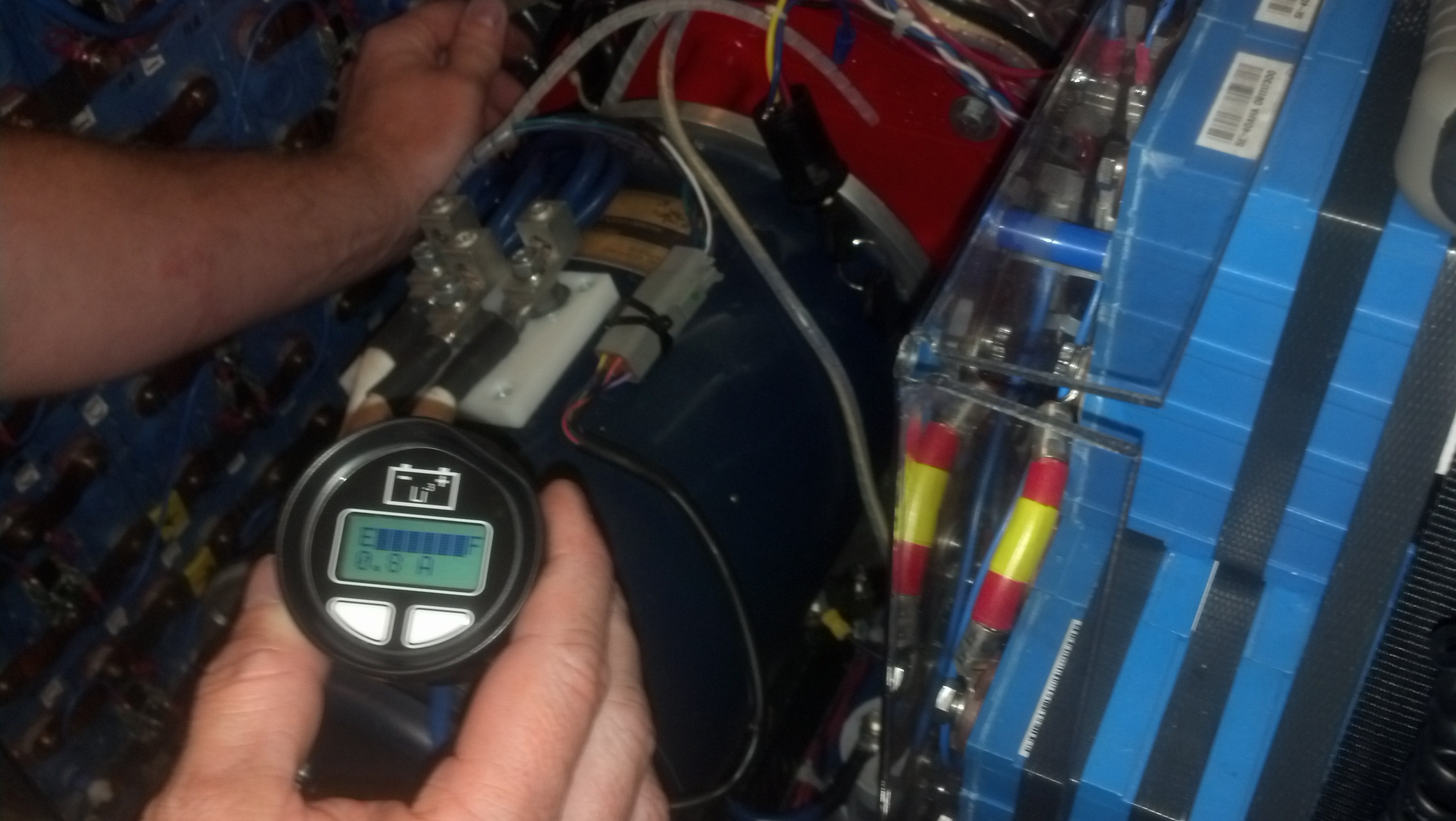

  • SOC Meter - CleanPowerAuto EV Display V4 with Bluetooth Communication
  • Battery Charger - Unidyn 1500W, 120-240v
  • Charge Time - Full charge in 7h on 240v, 9h on 120v

Specifications:

  • Weight - 1500lb
  • Top Speed - 85mph+
  • Acceleration - 0-50mph in 10sec.
  • Range - 50miles @ 50mph.
